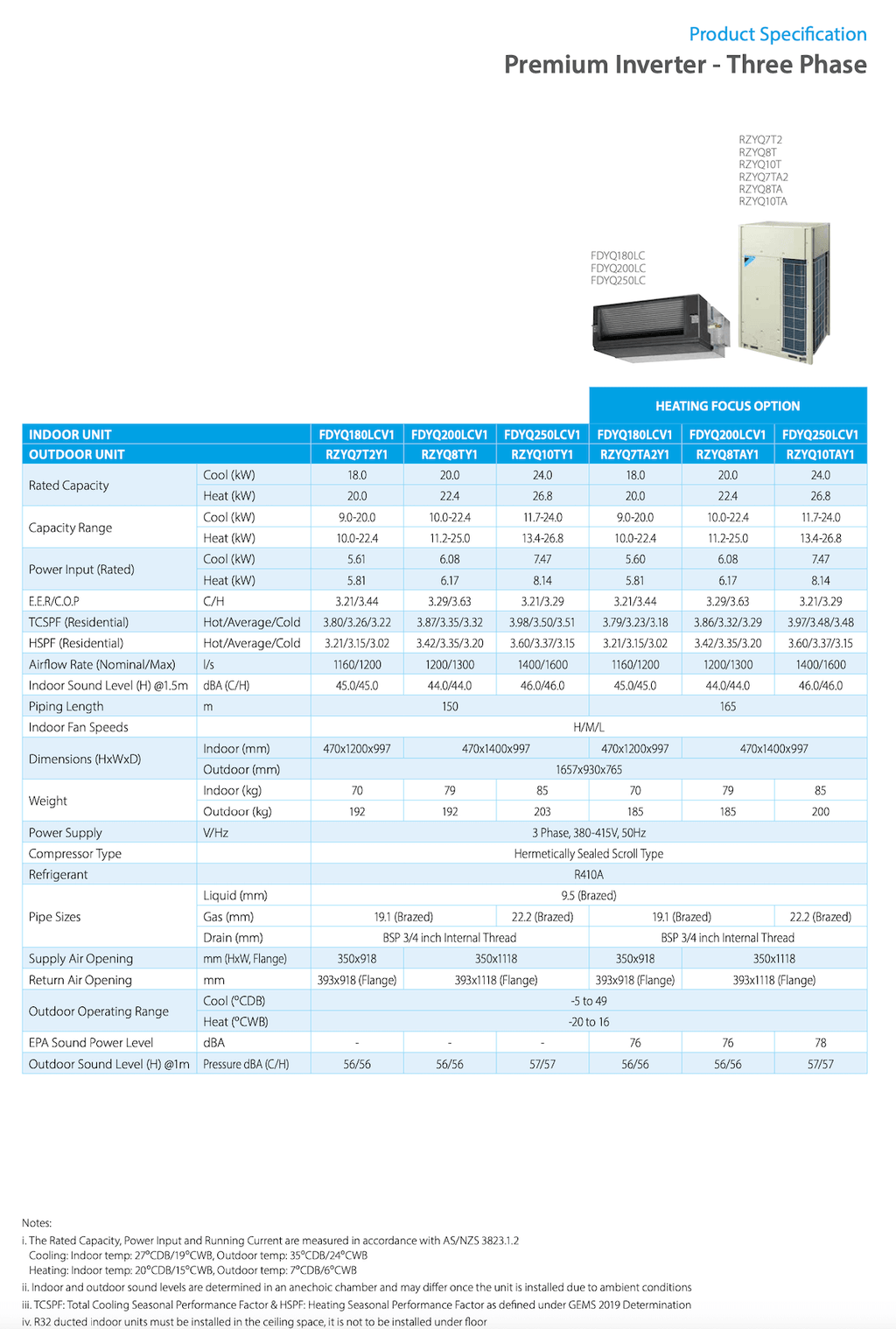

| INDOOR UNIT | FDYQ200LCV1 | |
| OUTDOOR UNIT | RZYQ8TY1 | |
| Rated Capacity | Cool (kW) | 20.0 |
| Heat (kW) | 22.4 | |
| Capacity Range | Cool (kW) | 12.0-22.4 |
| Heat (kW) | 13.4-25.0 | |
| Power Input (Rated) | Cool (kW) | 6.08 |
| Heat (kW) | 6.17 | |
| E.E.R/C.O.P | C/H | 3.29/3.63 |
| TCSPF (Residential) | Hot/Average/Cold | – |
| HSPF (Residential) | Hot/Average/Cold | – |
| Airflow Rate (Nominal/Max) | l/s | 1200/1300 |
| Indoor Sound Level (H) @ 1.5m | dBA (C/H) | 44.0/44.0 |
| Piping Length | m | 150 |
| Indoor Fan Speeds | H/M/L | |
| Dimensions (HxWxD) | Indoor (mm) | 470x1400x997 |
| Outdoor (mm) | 1657x930x765 | |
| Weight | Indoor (kg) | 79 |
| Outdoor (kg) | 192 | |
| Power Supply | V/Hz | 3 Phase, 380-415V, 50Hz |
| Compressor Type | Hermetically Sealed Scroll Type | |
| Refrigerant | R410A | |
| Pipe Sizes | Liquid (mm) | 9.5 (Brazed) |
| Gas (mm) | 19.1 (Brazed) | |
| Drain (mm) | BSP 3/4 inch Internal Thread | |
| Supply Air Opening | mm (HxW, Flange) | 350×1118 |
| Return Air Opening | mm | 393×1118 (Flange) |
| Outdoor Operating Range | Cool (°CDB) | -5 to 49 |
| Heat (°CWB) | -20 to 16 | |
| EPA Sound Power Level | dBA | – |
| Outdoor Sound Level (H) @ 1m | Pressure dBA (C/H) | 56/56 |
Daikin 20kW Premium Inverter Ducted Air Conditioner FDYQ200
$8,372.00
Sale price
$8,372.00
Regular price
$9,580.00
Skip to product information
Daikin 20kW Premium Inverter Ducted Air Conditioner FDYQ200
$8,372.00
Sale price
$8,372.00
Regular price
$9,580.00
Overview

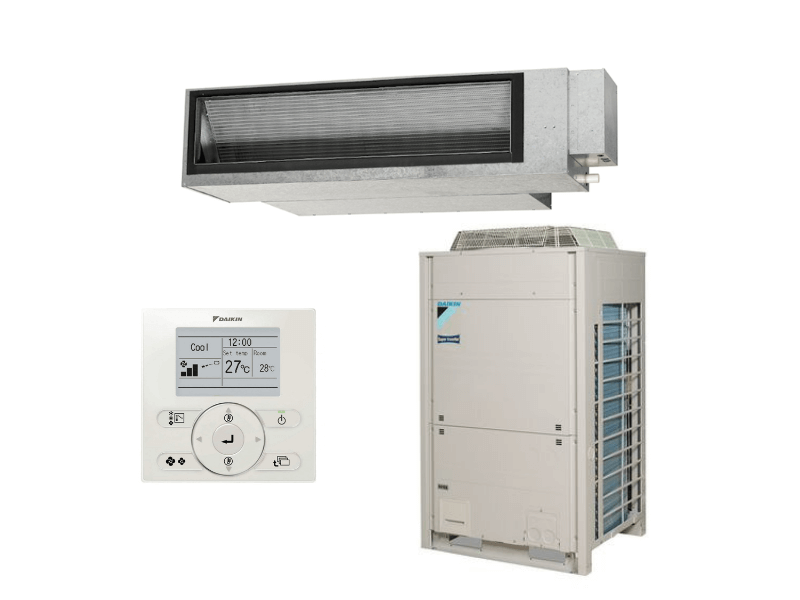

DAIKIN FDYQ200LCV1 / RZYQ8TY1 20.0kW Premium Inverter Ducted Air Conditioner | Three Phase
Best For:
Heating or cooling your entire home
Small to large houses
Houses with limited roof space and outdoor space All Daikin air conditioners exceed MEPS requirements, in line with Daikin's commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.
20kW Cooling – 22.4kW Heating Capacity
Indoor : FDYQ200LCV1
Outdoor: RZYQ8TY1

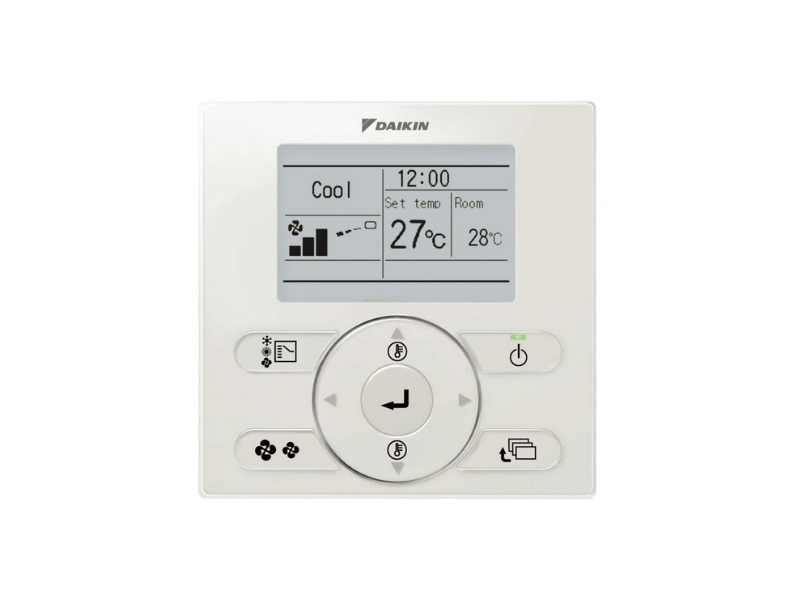

Back lit Wall Controller: BRC1E63
