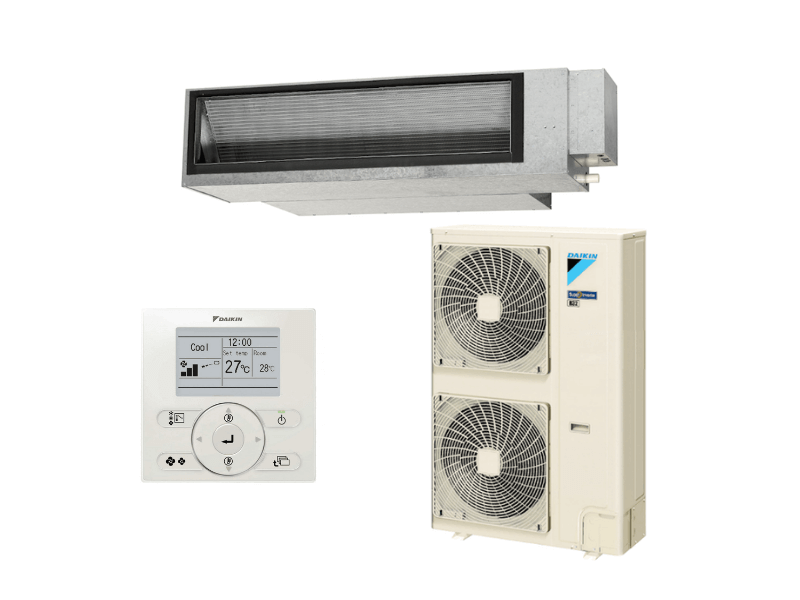

Daikin 10kW Premium Inverter Ducted Air Conditioner FDYA100
$4,818.00
Sale price
$4,818.00
Regular price
$5,513.00
Skip to product information
Specifications
Daikin 10kW Premium Inverter Ducted Air Conditioner FDYA100
$4,818.00
Sale price
$4,818.00
Regular price
$5,513.00
Overview
DAIKIN FDYA100AV19 / RZAS100C2V1 10kW Premium Inverter Ducted Air Conditioner | Single Phase
Best For:
Heating or cooling your entire home
Small to large houses
Houses with limited roof space and outdoor space All Daikin air conditioners exceed MEPS requirements, in line with Daikin's commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.
10kW Cooling – 12.5kW Heating Capacity
Indoor : FDYA100AV19

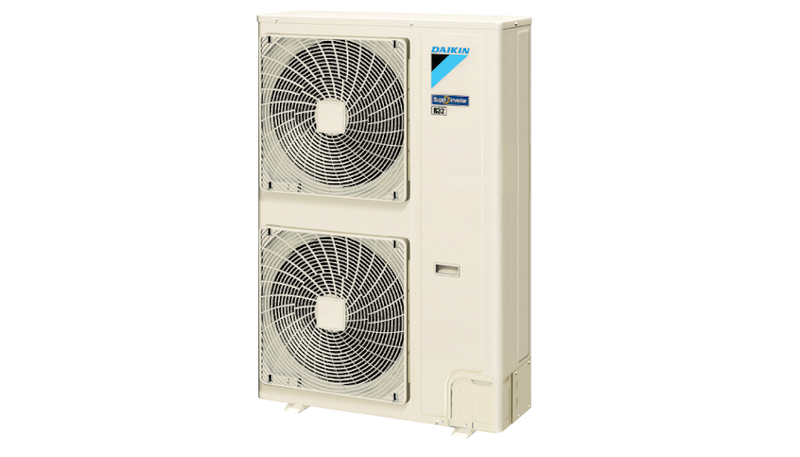

Outdoor: RZAS100C2V1

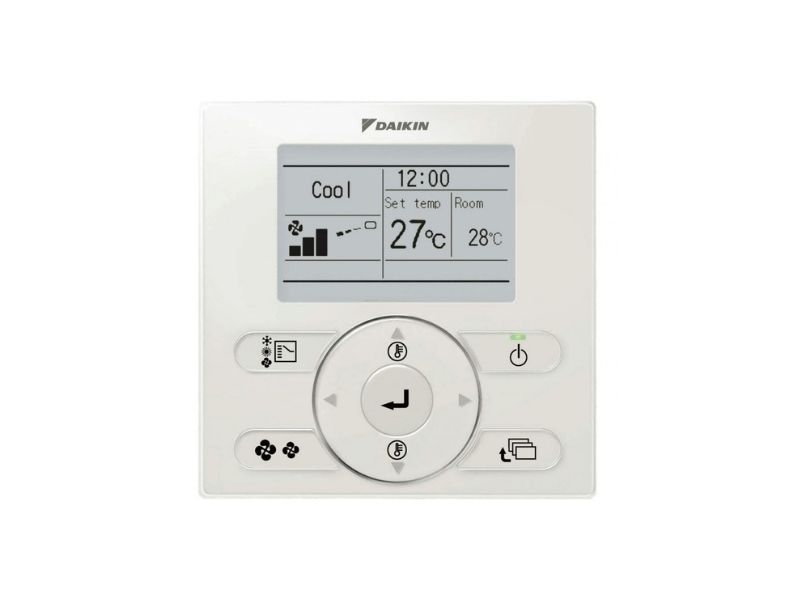

Backlit Wall Controller: BRC1E63

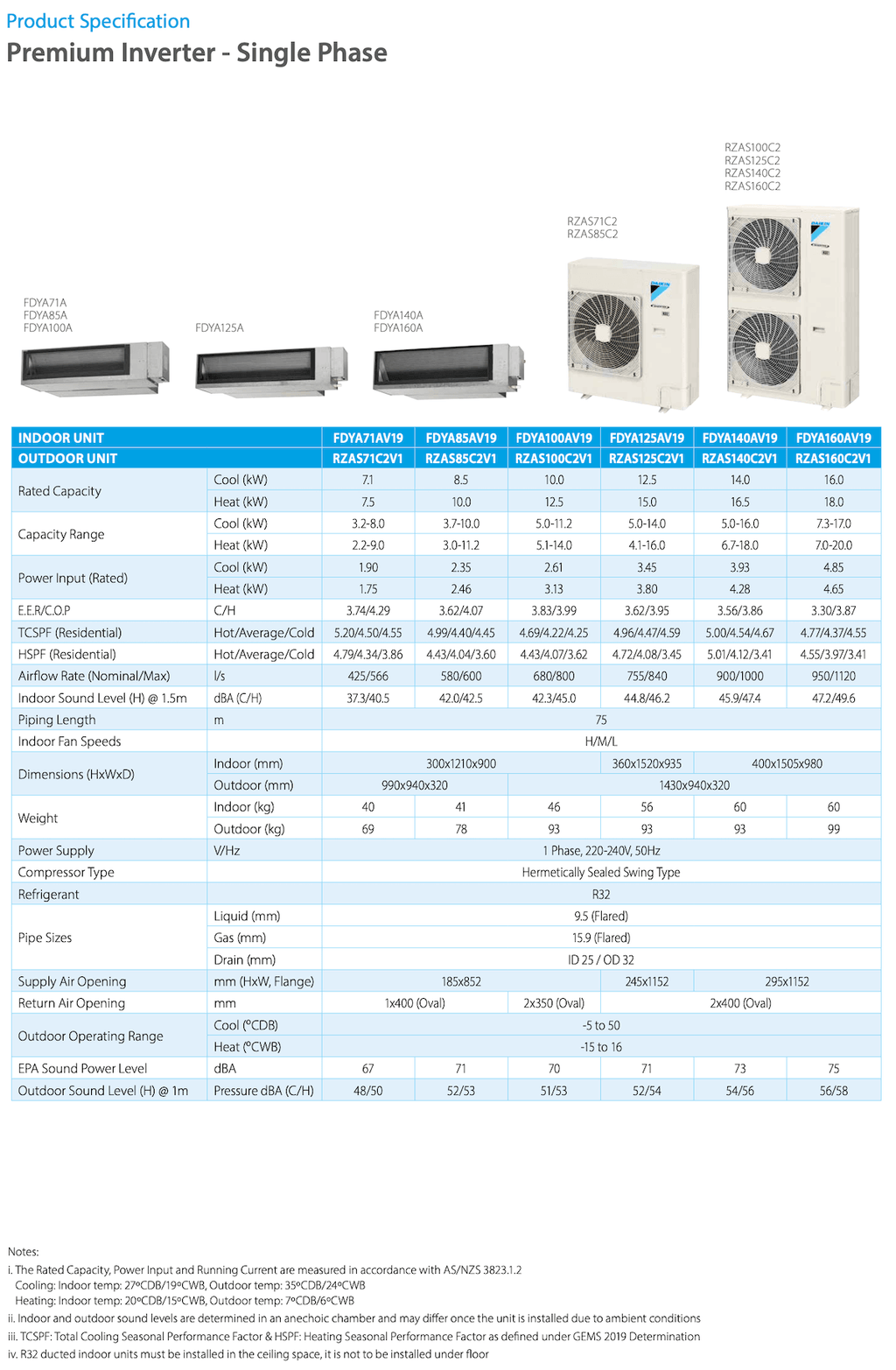

Specifications
| INDOOR UNIT | FDYA100AV19 | |
| OUTDOOR UNIT | RZAS100C2V1 | |
| Rated Capacity | Cool (kW) | 10.0 |
| Heat (kW) | 12.5 | |
| Capacity Range | Cool (kW) | 5.0-11.2 |
| Heat (kW) | 5.1-14.0 | |
| Power Input (Rated) | Cool (kW) | 2.61 |
| Heat (kW) | 3.13 | |
| E.E.R./C.O.P. | Cool/Heat | 3.83/3.99 |
| Air Flow Rate (Rated) | I/S | 680 |
| Indoor Sound Level (@1.5m) | dBA | 42.3 |
| Piping Length | (m) | 75 |
| Indoor Fan Speeds | H/M/L | |
| Dimensions (HxWxD) | Indoor (mm) | 300x1210x900 |
| Outdoor (mm) | 1430 x 940 x 320 | |
| Weight | Indoor(kg) | 46 |
| Outdoor(kg) | 93 | |
| Power Supply | V/Hz | 1 Phase, 220-240V, 50Hz |
| Compressor Type | Hermetically Sealed Swing Type | |
| Refrigerant | R32 | |
| Pipe Sizes | Liquid (mm) | 9.5 (Flared) |
| Gas (mm) | 15.9 (Flared) | |
| Drain (mm) | ID 25 / OD 32 | |
| Supply Air Opening | mm (HxW, Flange) | 185x852 |
| Return Air Opening | mm (Oval) | 2x350 (Oval) |
| Outdoor Operating Range | Cool (°CDB) | -5 to 50 |
| Heat (°CWB) | -15 to 16 | |
| EPA Sound Power Level | dBA | 70 |
| Outdoor Sound Level (H) @1m | Pressure dBA (C/H) | 51/53 |
