Samsung AC140TN4DKG/SA/Panel 14.0kW 4-Way Cassette Wind-Free
$4,817.00
Sale price
$4,817.00
Regular price
$5,100.00
Skip to product information
Samsung AC140TN4DKG/SA/Panel 14.0kW 4-Way Cassette Wind-Free
$4,817.00
Sale price
$4,817.00
Regular price
$5,100.00
Overview

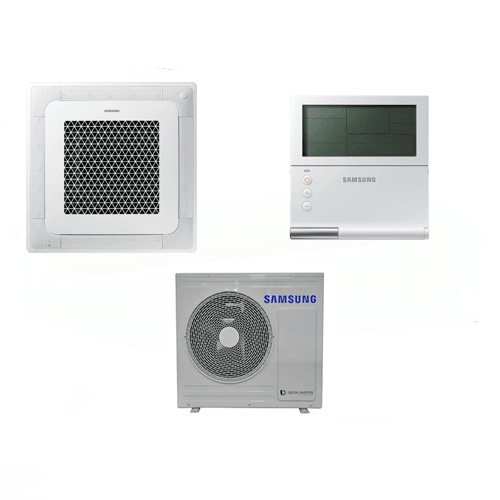

Samsung AC140TN4DKG/SA/Panel 14.0kW 4-Way Cassette Wind-Free
Experience the ultimate in climate control with the Samsung AC140TN4DKG/SA 14.0kW 4-Way Cassette System air conditioner. This unit offers Wind-Free technology for optimal comfort without the draft, providing both 14.0kW cooling and heating capabilities. With its sleek design, energy efficiency and R32 refrigerant, it ensures a sustainable and powerful performance for both residential and commercial spaces. The system includes a wired remote controller for convenient operation, making it an ideal choice for maintaining the perfect indoor environment.
Indoor: AC140TN4DKG/SA
Outdoor: AC140TXAPKG/SA
Controller: Wired Remote Controller MWR-WE13N included
Specifications
| Model | Indoor Unit | AC140TN4DKG/SA | |
| Outdoor Unit | AC140TXAPKG/SA | ||
| Ê Capacity2 | Refrigerant | R32 | |
| Cooling (Min/Std/Max) | kW | 4.7 / 14.0 / 15.5 | |
| Heating (Min/Std/Max) | kW | 4.0 / 16.0 / 18.0 | |
| Ê kœ_______ | Energy Grade (Cooling) | EER | 3.20 |
| Energy Grade (Heating) | COP | 3.30 | |
| Energy Grade (Cooling) | AEER | 3.19 | |
| Energy Grade (Heating) | ACOP | 3.29 | |
| Electrical3 | MCA | A | 33.5 |
| MFA | A | 40.0 | |
| Air Flow Rate (H, M, L) Cooling | l/s | 533/433/350 | |
| Air Flow Rate (H, M, L) Heating | l/s | 533/433/350 | |
| Sound Pressure @ 1.5m (H/M/L)4 | dB(A) | 44 / 40 / 36 | |
| Sound Power5 | dB(A) | 61 | |
| Net Weight | kg | 20 | |
| Shipping Weight | kg | 24 | |
| Unit Dimensions (WxHxD) | mm | 840 x 288 x 840 | |
| Shipping Dimensions (WxHxD) | mm | 898 x 357 x 898 | |
| Drain Pump | Included | ||
| Drain Lift / Displacement | mm/(L/hr) | 750 / 24 | |
| Drain connection size | mm | OD 32 / ID 25 | |
| Ê Ê Panel (Sold Separately) | Model | PC4NUFMAN | |
| Type | Wind-Free | ||
| Net Weight | kg | 6.3 | |
| Shipping Weight | kg | 8.7 | |
| Unit Dimensions (WxHxD) | mm | 950 x 48 x 950 | |
| Shipping Dimensions (WxHxD) | mm | 1,010 x 117 x 1,000 | |
| Ê Ê Ê Ê Outdoor Unit | Power Supply | __ __ __ __ | ____ _________ ________ |
| Compressor Type | Rotary | ||
| Sound Pressure @ 1m (Cool/Heat)4 | dB(A) | 54 / 56 | |
| Sound Power5 | dB(A) | 70 | |
| Net Weight | kg | 100.5 | |
| Shipping weight | kg | 109.5 | |
| Net Dimensions (WxHxD) | mm | 940 x 1420 x 330 | |
| Shipping Dimensions (WxHxD) | mm | 995 x 1598 x 426 | |
| Ê Ê Installation | Liquid Pipe | mm / in | 9.52, 3/8_ |
| Gas Pipe | mm / in | 15.8, 5/8_ | |
| Max. Allowable Piping Length | m | 85 | |
| Max. Allowable Piping Height | m | 30 | |
| Pre-charged Length | m | 30 | |
| Operating Range | Cooling | _C | -15 to 50 |
| Heating | _C | -20 to 24 | |
