Overview

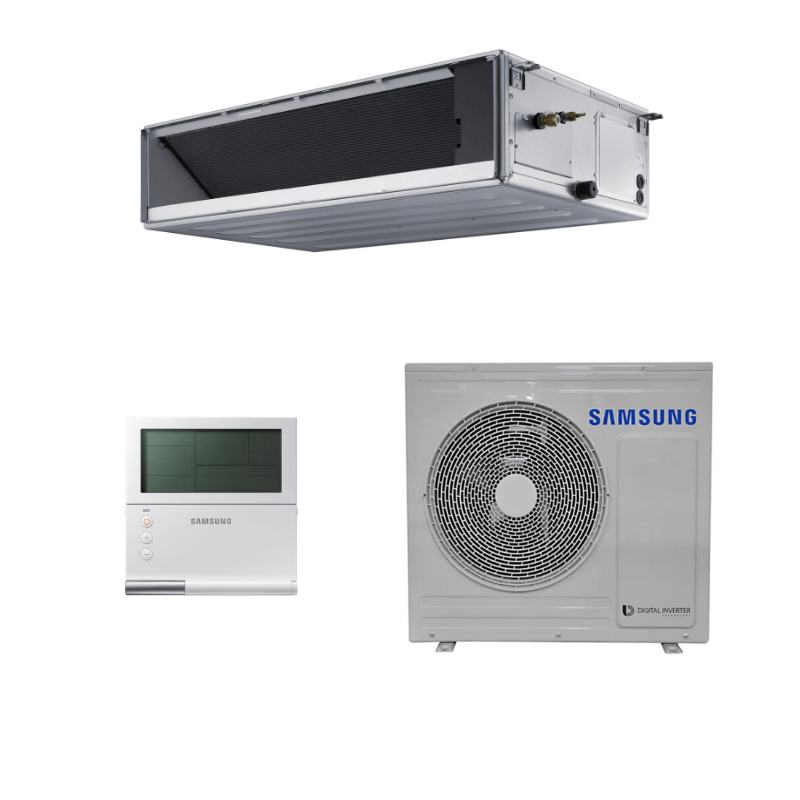

Samsung 7.1kW Duct S2 Inverter Ducted Air Conditioner | 1 Phase
The Samsung Duct S2 ducted air conditioner has a powerful airflow that allows for quick cooling in any home. The compact design of this ducted air conditioning system also makes it easy to install almost anywhere.
Features of Samsung Duct S2 7.1kW:
- Twin BLCD compressor and auto ESP.
- Demand Response Enabled Device (D.R.E.D)
- 3-way service access
- Digital Inverter Technology

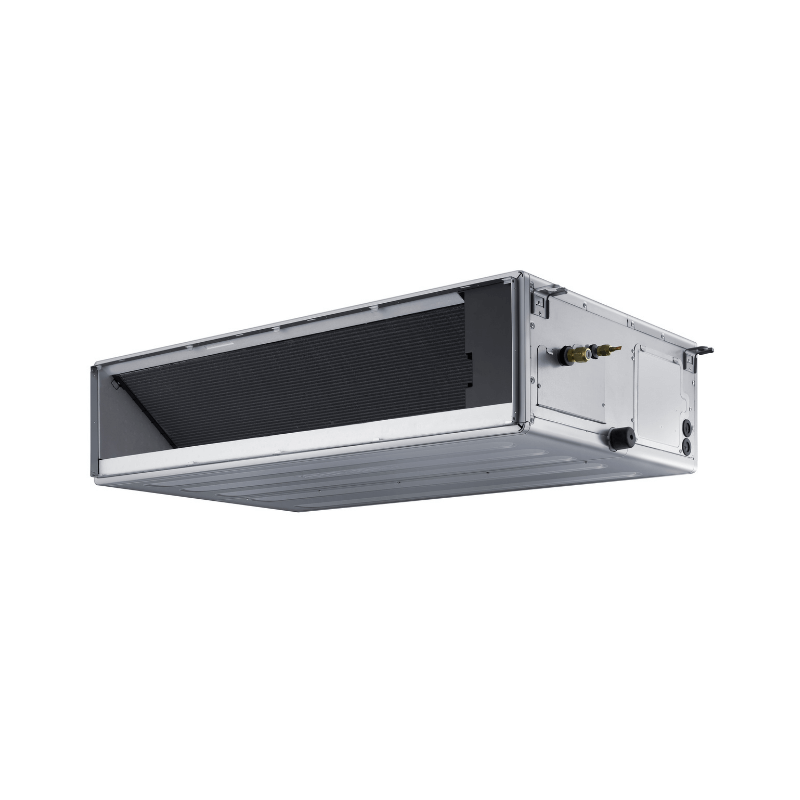

Indoor : AC071TNHDKG/SA 7.1kW

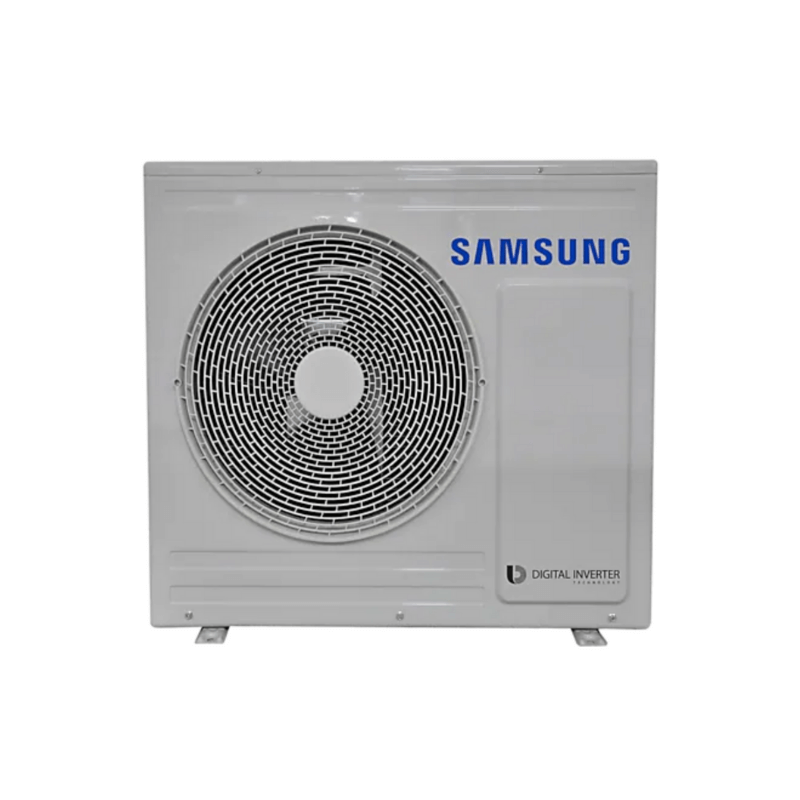

Outdoor : AC071TXAPKG/SA 7.1kW

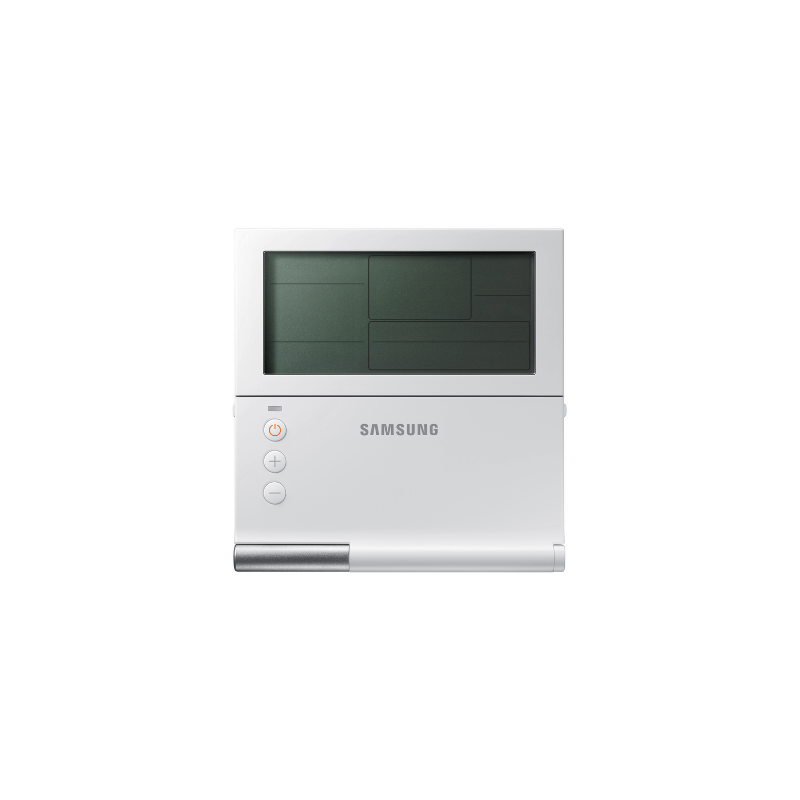

Controller : MWR-WE13N
Features
Powerful airflow for fast cooling
More fans than ever
Samsung Duct S2 provides powerful airflow for fast cooling for your home. With 2 fans in the 5.2kW model and 3 fans in the 7.1kW-14kW models, the Duct S2 will provide the airflow for comfort when you needed most.
Low running cost
The Duct S2’s highly efficient air conditioning system helps to avoid a hefty bill – meaning you can run your air conditioning all day long.
Lightweight and easy to install
Ultimate Convenience
Duct S2 is designed to help make installation easy, with its lightweight and compact indoor unit. Larger capacity models (16kW and above) can be easily separated for handling and manoeuvring into tight installation spaces.
Hello R32 Refrigerant!
Low GWP (Global Warming Potential) refrigerant
Samsung has added the new eco-friendly R32 refrigerant to its air conditioning range. R32 Refrigerant has a low Global Warming Potential (GWP)* and a zero Ozone Depletion Potential (ODP) effect – which helps to protect the ozone layer!
Comfortable and Reliable
Samsung Ducted Air Conditioners are designed to keep on working, even on those extremely
hot or cold days. With an operating range of -15°C to 50°C outside air temperature for cooling,
and -20°C to 24°C for heating, you can be assured that your unit can work when you need it*.
Its smart inverter system delivers your set temperature quickly, and keeps performing fine tune adjustments to ensure a constant, comfortable environment.
Rest assured with Samsung quality
5 Year Parts and Labour Warranty
Peace of mind knowing we have you covered with Samsung’s 5 year parts and labour warranty for residential applications. For full terms and conditions visit Samsung Warranty
Specifications
| Model Name | |
| Indoor Unit | AC071TNHDKG/SA |
| Outdoor Unit (1-Phase) | AC071TXAPKG/SA |
| Refrigerant | |
| Type | R32 |
| Rated Capacity | |
| Cooling (Min / Std / Max) | 2.00 / 7.10 / 8.00 kW |
| Heating (Min / Std / Max) | 1.70 / 8.00 / 9.00 kW |
| Sound Pressure | |
| Sound Pressure @ 1.5m (H/L | 36 / 28 dBA |
| Physical Specifications | |
| Unit Dimension (WxHxD) | 1200 x 250 x 700 mm |
| Net Weight (kg) | 34 kg |
| Installation | |
| Liquid Pipe (Φ, mm) | 6.35, 1/4" |
| Gas Pipe (Φ, mm) | 15.8, 5/8" |
| Max. Allowable Piping Length [m] | 50 m |
| Max. Allowable Piping Height [m] | 30 m |
| Drain connection size | OD 32 / ID 25 mm |
| Pre-charged Length (m) | 20 |
| Operating Range | |
| Cooling (℃) | -15 to 50 ℃ |
| Heating (℃) | -20 to 24 ℃ |
| Energy Efficiency | |
| EER (Std, Cooling) | 3.21 |
| COP (Std, Heating) | 4 |
| AEER (Cooling) | 3.21 |
| ACOP (Heating) | 3.99 |
| Indoor Unit Fan | |
| ESP (L,M,H) | 0 / 39 / 147 |
| Air Flow Rate (H, M, L) | 400 / 333 / 283 |
| Air opening | |
| Supply Air Opening (WxH) | 1168 x 220 |
| Return Air Opening (WxH) | 1168 x 220 |
| Convenience | |
| Power Supply | 1-phase, 220-240V, 50Hz |
| Smart |
|
| WiFi Kit | Yes |
| App Connectivity | |
| SmartThings App Support | Yes |
| Outdoor Unit (1-phase) | |
| Model Code | AC071TXAPKG/SA |
| Power Supply | 1-phase, 220-240V, 50Hz |
| Type | Twin BLDC Rotary |
| Sound Pressure @ 1m (Cool/Heat | 50 / 52 |
| Sound Power (Cooling - High) | 66 |
| Net Weight | 51 |
| Shipping weight | 55 |
| Net Dimensions (WxHxD) | 880 x 798 x 310 |
| Shipping Dimensions (WxHxD) | 1,023 x 896 x 413 |
| Electrical (MCA) | 18.8 |
| Electrical (MFA) | 20.7 |
