Overview

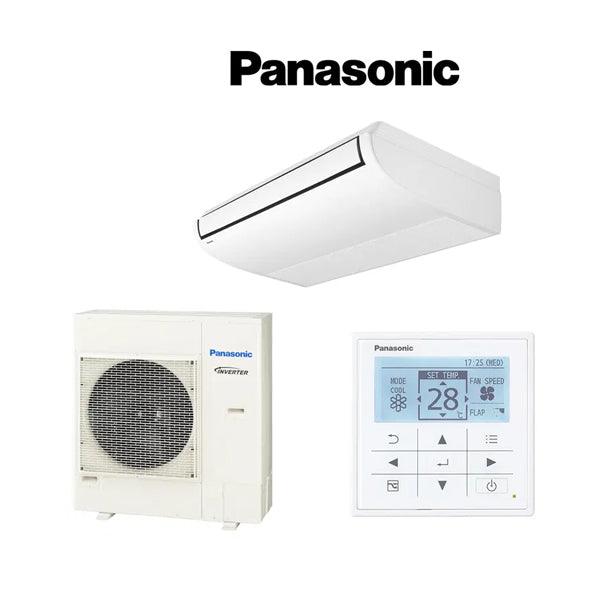

Panasonic S-140PT2E5B / U-140PZ2R8 13.6kW Under Ceiling System
The Panasonic S-140PT2E5B / U-140PZ2R8 13.6kW under ceiling air conditioner is designed to deliver robust cooling and heating solutions with precision and efficiency. Perfectly suited for expansive spaces, this system ensures optimal comfort with a powerful airflow of 583 l/sec. Equipped with the eco-friendly R32 refrigerant and a reliable three-phase power supply, it promises seamless performance. The system is complemented by the CZ-RTC5B Wired Controller for easy operation, making it an ideal choice for those seeking superior climate control.
Indoor Dimensions: 235 x 1590 x 690 mm
Outdoor Dimensions: 996 x 980 x 370 mm
Specifications
| Cooling (kW): | 13.60 |
| Heating (kW): | 14.00 |
| Airflow (l/sec): | 583 |
| Indoor Dimensions H x W x D (mm): | 235 x 1590 x 690 |
| Outdoor Dimensions H x W x D (mm): | 996 x 980 x 370 |
| Power Supply (V/Ph/Hz): | 415/3/50 |
| Power Supply Connection: | Outdoor |
| Max Amp Indoor (1 Ph)/Outdoor (3 Ph): | 0.88/10.50 (per phase) |
| Refrigerant Type: | R32 |
| Pipe Sizes (Liquid/Gas mm): | 9.52/15.88 |
| Min/Max Pipe Run (m): | 5/50 |
| Pre-Charged Run (m): | 30 |
| Add Ref Charge (g/m): | 45 |
| Max Elevation OU Higher/Lower than IU (m): | 30/15 |
| Weight Indoor/Outdoor (kg): |
