Overview
Panasonic CS-Z35UB4RAW / CU-Z35UBRA 3.5kW R32 Mini Cassette

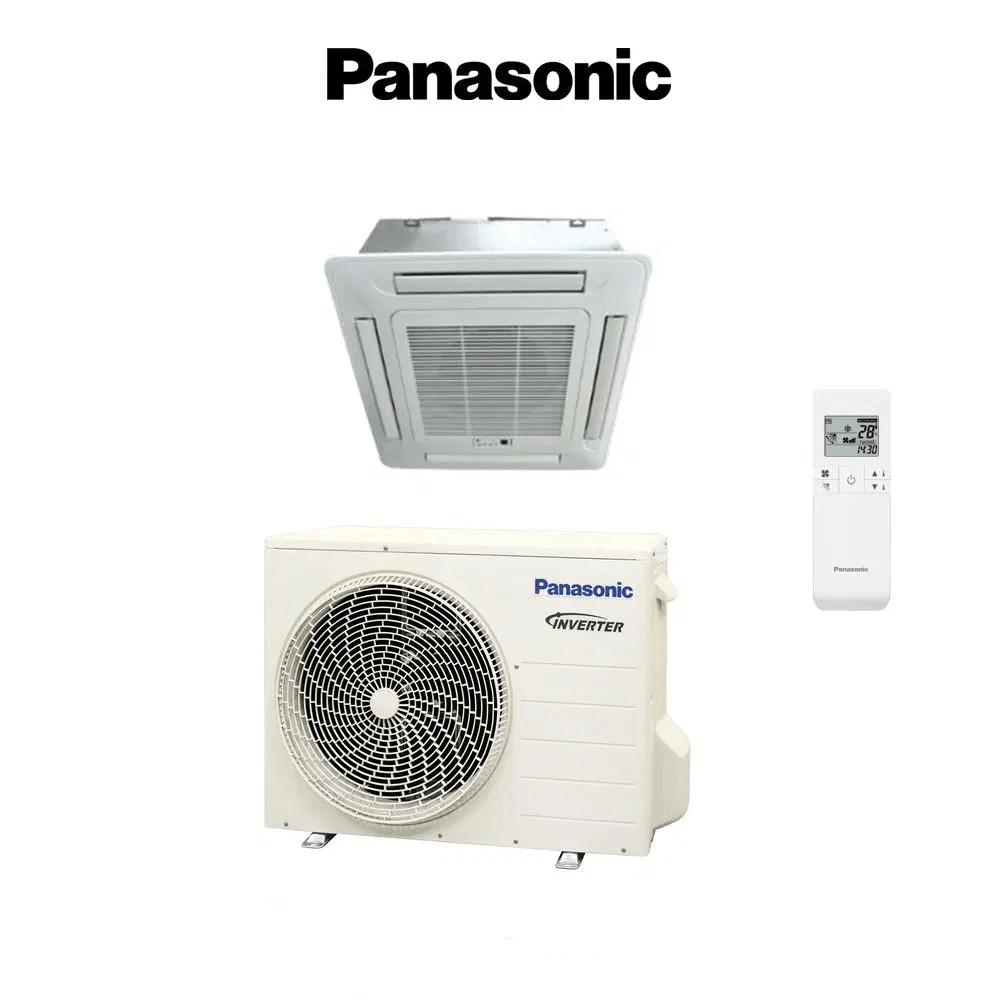

The Panasonic CS-Z35UB4RAW / CU-Z35UBRA 3.5kW R32 Mini Cassette air conditioner offers superior performance with seamless integration into your space. Equipped with R32 refrigerant, this unit provides efficient cooling at 3.5kW and heating at 4.0kW. Compact in design, it fits neatly into any room, delivering optimal climate control with minimal impact. Ideal for both residential and commercial settings, it includes an I/R controller and fascia for enhanced convenience and ease of use.
Indoor Dimensions: 260 x 575 x 575 mm
Outdoor Dimensions: 619 x 824 x 299 mm
Specifications
| Cooling (kW): | 3.50 |
| Heating (kW): | 4.00 |
| Indoor Dimensions H x W x D (mm): | 260 x 575 x 575 |
| Outdoor Dimensions H x W x D (mm): | 619 x 824 x 299 |
| Power Supply (V/Ph/Hz): | 240/1/50 |
| Power Supply Connection: | Outdoor |
| Max Amp: | 8.0 |
| Refrigerant Type: | R32 |
| Pipe Sizes (Liquid/Gas mm): | 6.35/9.52 |
| Min/Max Pipe Run (m): | 3/20 |
| Pre-Charged Run (m): | 7.5 |
| Add Ref Charge (g/m): | 10 |
| Max Elevation OU Higher/Lower than IU (m): | 15 |
| Weight Indoor/Outdoor (kg): | 18/35 |
