Overview
Panasonic 16kW Deluxe Inverter Ducted Air Conditioner S-160PE4R / U-160PZH3R5 | 1 Phase R32
Panasonic high static ducted air conditioner with large airflow, Nanoe X air purification technology and exceptional installation flexibility.
Features:
- Includes Nanoe X air purification technology
- Outstanding operating range
- Cold draft reduction technology
16kW Cooling – 18kW Heating Capacity

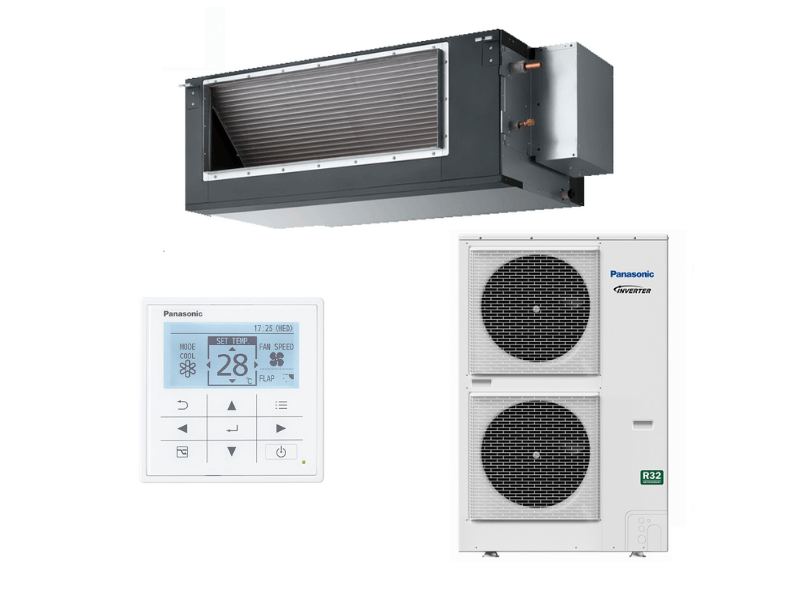

Panasonic 16kW Deluxe Inverter Ducted Air Conditioner
Indoor: S-160PE4R
Outdoor: U-160PZH3R5 | Single Phase R32
Includes CZ-RTC5B Wired Controller
Specifications
| Cooling (kW): | 16.0 (5.5 – 18.0) |
| Heating (kW): | 18.0 (5.5 – 20.0) |
| Airflow (l/sec) H/M/L: | 1002/835/701 |
| Indoor Dimensions H x W x D (mm): | 360 x 1200 x 700 |
| Outdoor Dimensions H x W x D (mm): | 1500 x 980 x 370 |
| Power Supply (V/Ph.Hz): | 240/1/50 |
| Power Supply Connection: | Outdoor |
| Max Amps Outdoor: | 29.0 |
| Refrigeration Type: | R32 |
| Pipe Sizes (liquid /Gas mm): | 9.52 / 19.05 |
| Min / Max Pipe Run (m): | 5 / 75 |
| Pre Charged Pipe Run (m): | 30 |
| Add Ref Charge (g/m): | 45 |
| Max Elevation – OU Higher / Lower than IU (m): | 30 / 30 |
| Supply Air Connection H x W (mm): | 336 x 1024 |
| Return Air Connection H x W (mm): | 336 x 1024 |
| Weight Indoor / Outdoor (kg): | 50 / 117 |
