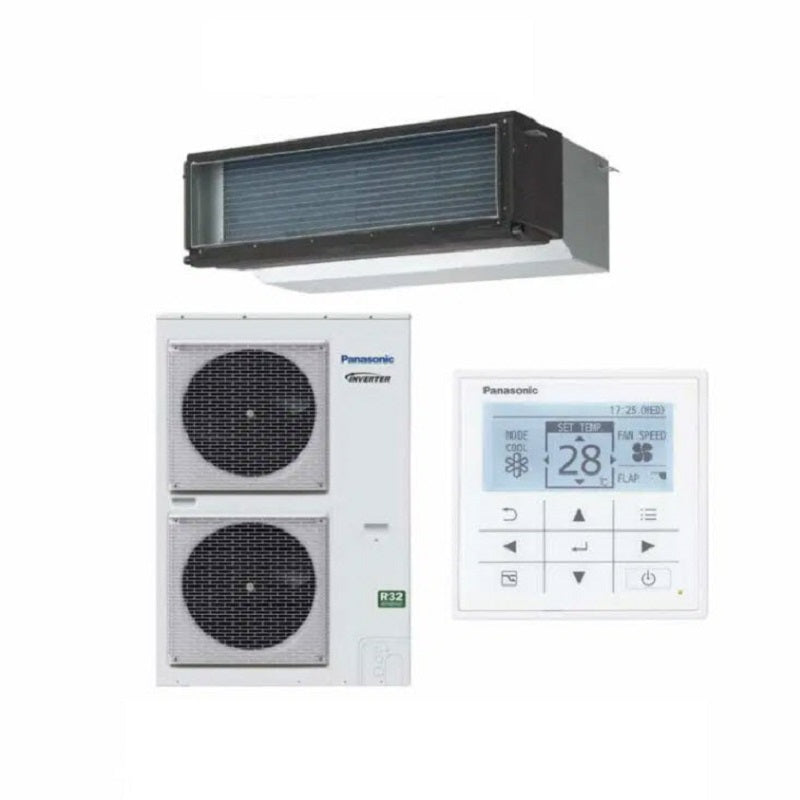

Panasonic 10kW Adaptive Ducted System Deluxe Twin Fan S-1014PF3E / U-100PZH3R5
$5,267.00
Sale price
$5,267.00
Regular price
$6,027.00
Skip to product information
Panasonic 10kW Adaptive Ducted System Deluxe Twin Fan S-1014PF3E / U-100PZH3R5
$5,267.00
Sale price
$5,267.00
Regular price
$6,027.00
Overview
Panasonic 10kW S-1014PF3E / U-100PZH3R5 Adaptive Ducted System | Deluxe Twin Fan | Single Phase
The Air Conditioner with 24 hour Air Purification – nanoe™X
10 kW Cooling
10 kW Heating
Click here to view the brochure of Panasonic Ducted System
Specifications
| Cooling (kW): | 10.0 (3.1 – 12.5) |
| Heating (kW): | 11.2 (3.1 – 14.0) |
| Airflow (l/sec) H/M/L: | 668/584/484 |
| Indoor Dimensions H x W x D (mm): | 250 x 1400 x 730 |
| Outdoor Dimensions H x W x D (mm): | 1416 x 940 x 340 |
| Power Supply (V/Ph.Hz): | 240/1/50 |
| Power Supply Connection: | Outdoor |
| Max Amps Outdoor: | 27.4 |
| Refrigeration Type: | R32 |
| Pipe Sizes (liquid /Gas mm): | 9.52 / 15.88 |
| Min / Max Pipe Run (m): | 5 / 85 |
| Pre Charged Pipe Run (m): | 30 |
| Add Ref Charge (g/m): | 45 |
| Max Elevation – OU Higher / Lower than IU (m): | 30 / 15 |
| Supply Air Connection H x W (mm): | 266 x 1024 |
| Return Air Connection H x W (mm): | 266 x 1024 |
| Weight Indoor / Outdoor (kg): | 37 / 99 |
