| Indoor | DXK33ZRA-WF1 | ||||
| Outdoor | DXC33ZRA-W | ||||
| Power source (Outdoor Unit) | 1 Phase 240V 50Hz | ||||
|
*Operation data
|
Nominal Capacity (Range)
|
Cooling T1 |
kW
|
9.5 (2.5~10.6) | |
| Heating H1 | 10.3 (3.2 ~11.9) | ||||
| Heating H2 | 9.6 | ||||
|
Power consumption
|
Cooling T1 |
kW
|
2.56 (0.5-3.2) | ||
| Heating H1 | 2.64 (0.6-3.7) | ||||
| Maximum power consumption | kW | 3.8 | |||
|
Running current
|
Cooling T1 |
A
|
10.8 | ||
| Heating H1 | 11.1 | ||||
| Inrush current, maximum current | A | 11.1, 17.5 | |||
| EER | Cooling T1 |
|
3.71 | ||
| COP | Heating H1 | 3.9 | |||
| Sound power level (JIS C9612) | Outdoor | dB(A) | 69 | ||
|
Sound pressure level (JIS C9612)
|
Indoor |
dB(A)
|
48-45-40-26 | ||
| Outdoor | 57 | ||||
|
Energy label (GEMS 2019)
|
HOT
|
Cooling |
|
3.5 | |
| Heating | 3.5 | ||||
|
AVERAGE
|
Cooling | 3.5 | |||
| Heating | 2.5 | ||||
|
COLD
|
Cooling | 3.5 | |||
| Heating | 2 | ||||
|
External dimensions (HxWxD)
|
Indoor |
mm
|
339x1197x262 | ||
| Outdoor | 845×970(+89)x370 | ||||
|
Net weight
|
Indoor |
kg
|
16.5 | ||
| Outdoor | 69 | ||||
|
Airflow
|
Indoor (Cooling) |
l/s
|
408-355-293-173 | ||
| Indoor (Heating) | 458-386-318-227 | ||||
|
Refrigerant (Type, amount, pre-charge length)
|
Quantity | kg | (R32) 2.0 | ||
| Pre charged to pipe length | m | 15 | |||
|
Installation data
|
Refrigerant piping
|
Liquid line |
mm
|
Ø9.52 | |
| Gas line | Ø15.88 | ||||
| Connection method | Flare connection | ||||
| Maximum pipe (one way) length | m | 30 | |||
| Max vertical height diff. between O.U. and I.U. | m | 20 ( O.U. above I.U. ) / 20 ( O.U. below I.U. ) | |||
| Standard accessories | Allergen clear filter , NOVAShield Nano filter (PM2.5), Built-in Wi-Fi | ||||
| Optional parts | Interface kit (SC-BIKN2-E) | ||||
| Demand response (AS4755) | Yes | ||||
| * Operation data are conducted in accordance with AS/NZS 3823 standard. For testing conditions please refer to Page xxx | |||||

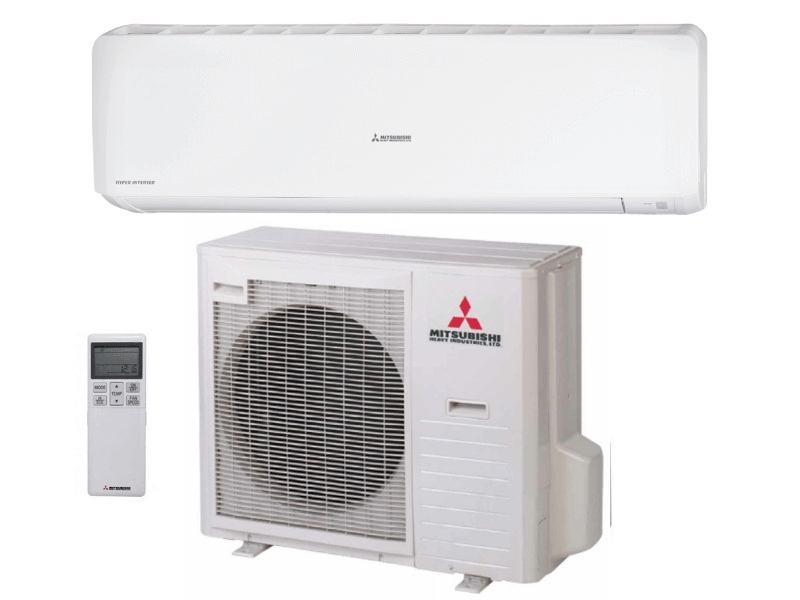

Mitsubishi Heavy Industries Bronte 9.5kW Split System DXK33ZRA-WF1 | Built-in Wi-Fi
$3,497.00
Sale price
$3,497.00
Regular price
$3,685.00
Skip to product information
Mitsubishi Heavy Industries Bronte 9.5kW Split System DXK33ZRA-WF1 | Built-in Wi-Fi
$3,497.00
Sale price
$3,497.00
Regular price
$3,685.00
Overview
Mitsubishi Heavy Industries Bronte 9.5kW Reverse Cycle Inverter Split System Air Conditioner DXK33ZRA-WF1 / DXC33ZRA-W
The WF1 Range of Bronte® Split Systems provides exciting enhancements to elevate your comfort experience. You can browse our products with codes ending in WF1, or simply consult your local trusted MHIAA installer to discover if this system is the perfect fit for you.
- Built-In Wi-Fi: Connect your unit to your home network for effortless comfort at your fingertips.
- NOVAShield™ PM2.5 Filter: Captures fine particulate matter such as smoke, dust, pollen and other pollutants.*
- GEMS Cooling Star Rating Improvements: Optimise your energy efficiency with several GEMS star cooling rating improvements across select zones.
- Voice Control Compatibility: Easily control your Bronte® via your Google or Amazon smart home device (sold separately).
