| Indoor | SRK50ZSXA-WF | ||||
| Outdoor | SRC50ZSXA-W | ||||
| Power source (Outdoor Unit) | 1 Phase 240V 50Hz | ||||
|
*Operation data
|
Nominal Capacity (Range)
|
Cooling T1 |
kW
|
5.0 (1.0~6.2) | |
| Heating H1 | 6.0 (0.8~8.2) | ||||
| Heating H2 | 6 | ||||
|
Power consumption
|
Cooling T1 |
kW
|
1.24 (0.19~1.90) | ||
| Heating H1 | 1.36 (0.20~2.46) | ||||
| Maximum power consumption | kW | 2.9 | |||
|
Running current
|
Cooling T1 |
A
|
5.2 | ||
| Heating H1 | 5.7 | ||||
| Inrush current, maximum current | A | 5.0. 15.0 | |||
| EER | Cooling T1 |
|
4.03 | ||
| COP | Heating H1 | 4.41 | |||
| Sound power level (JIS C9612) | Outdoor | dB(A) | 63 | ||
|
Sound pressure level (JIS C9612)
|
Indoor |
dB(A)
|
44-39-31-22 | ||
| Outdoor | 51 | ||||
|
Energy label (GEMS 2019)
|
HOT
|
Cooling |
|
4 | |
| Heating | 3.5 | ||||
|
AVERAGE
|
Cooling | 3.5 | |||
| Heating | 3 | ||||
|
COLD
|
Cooling | 3.5 | |||
| Heating | 2.5 | ||||
|
External dimensions (HxWxD)
|
Indoor |
mm
|
305X920X220 | ||
| Outdoor | 640X800(+71)X290 | ||||
|
Net weight
|
Indoor |
kg
|
13 | ||
| Outdoor | 45 | ||||
|
Airflow
|
Indoor (Cooling) |
l/s
|
238-207-130-90 | ||
| Indoor (Heating) | 288-238-163-103 | ||||
|
Refrigerant (Type, amount, pre-charge length)
|
Quantity | kg | (R32) 1.3 | ||
| Pre charged to pipe length | m | 15 | |||
|
Installation data
|
Refrigerant piping
|
Liquid line |
mm
|
Ø6.35 | |
| Gas line | Ø12.7 | ||||
| Connection method | Flare connection | ||||
| Maximum pipe (one way) length | m | 30 | |||
| Max vertical height diff. between O.U. and I.U. | m | 20 ( O.U. above I.U. ) / 20 ( O.U. below I.U. ) | |||
| Standard accessories | Allergen Clear & Photocatalytic Washable Deodorizing Filter, Built-in Wi-Fi | ||||
| Optional parts | Interface kit (SC-BIKN2-E) | ||||
| Demand response (AS4755) | Yes | ||||
Mitsubishi Heavy Industries Avanti Plus 5kW Split System SRK50ZSXA-WF / SRC50ZSXA-W | Built-in Wi-Fi
$1,828.00
Sale price
$1,828.00
Regular price
$1,828.00
Skip to product information
Mitsubishi Heavy Industries Avanti Plus 5kW Split System SRK50ZSXA-WF / SRC50ZSXA-W | Built-in Wi-Fi
Mitsubishi Heavy Industries Avanti Plus 5kW Split System SRK50ZSXA-WF / SRC50ZSXA-W | Built-in Wi-Fi
$1,828.00
Sale price
$1,828.00
Regular price
$1,828.00
Overview

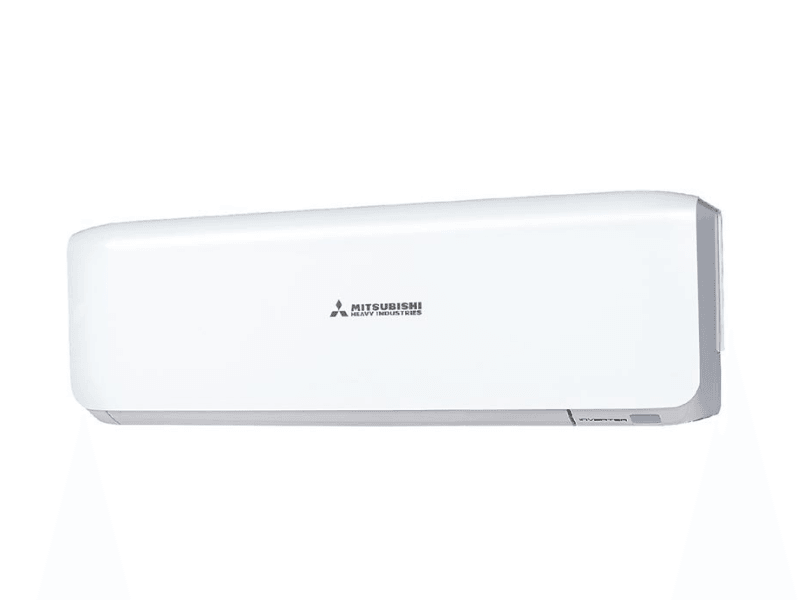

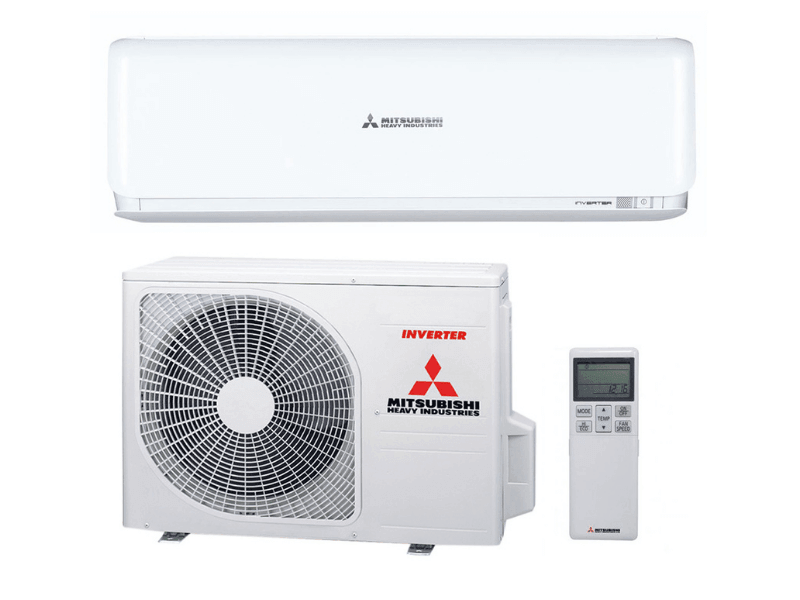

Mitsubishi Heavy Industries Avanti Plus C5.0kW H6.0kW Reverse Cycle Inverter Split System Air Conditioner SRK50ZSXA-WF / SRC50ZSXA-W | Built-in Wi-Fi
With an industry leading energy rating the Avanti PLUS® is our Platinum Series and is considered one of the most efficient split systems on the market. Whisper quiet and incorporating a range of energy saving and convenient features and functions such as motion sensor, eco-operation and adjustable LED display, the 5.0kW Avanti PLUS® split system is perfect for medium spaces such as living areas or a large bedroom.
Key features
- Highly efficient 4.5 star energy rating
- Built-in Wi-Fi and voice control compatibility
- Whisper quiet operation
- Energy saving motion sensor and eco operation
- Clean Air Technology to capture smoke particles and deliver allergen and odour free air
- Improved auto mode allowing for precise temperature control
Avanti Plus Series Brochure.pdf
Features
| Fuzzy Auto Mode | Eco Operation |
| Jet Air Technology | High Power Operation |
| 3D Auto | Auto Louvre Mode |
| Memory Louvre | Up/Down Louvre Swing |
| Right/Left Louvre Swing | Positioning of Installation |
| Allergen Clear Operation | Self-Clean Operation |
| Photocatalytic Washable Deodorising Filter | Allergen Filter |
| Removable Cover Panel | Dry Operation |
| Silent Operation | Night Setback |
| Comfort Start-up | Weekly Timer |
| Sleep Timer | On/Off Timer |
| Preset Operation | Child Lock |
| LED Brightness Adjustment | Auto Operation |
| Microcomputer -Operated Defrosting | Self- Diagnostic Function |
| Back-up Switch | Auto Restart Function |
