Overview

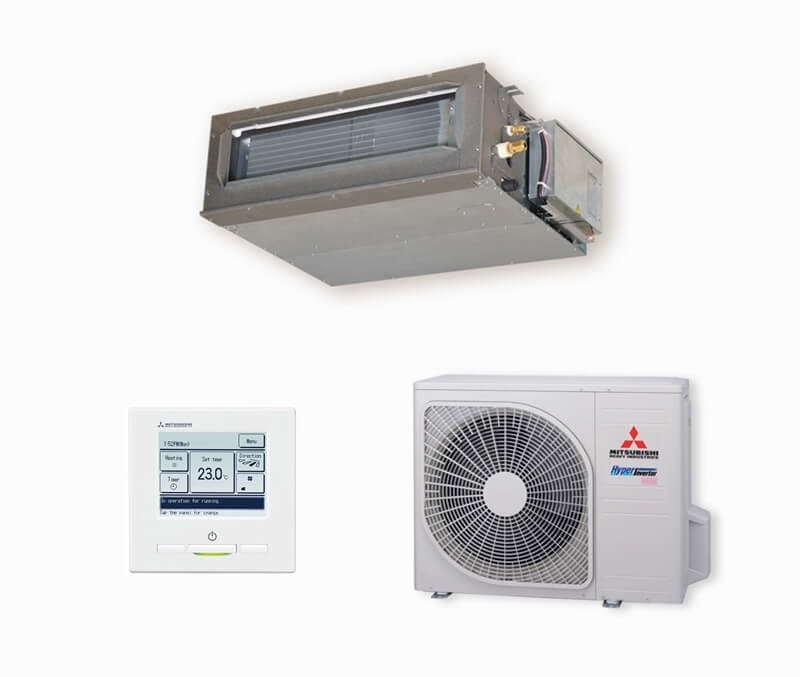

Mitsubishi Heavy Industries FDUM60ZSXAWVH 6kW Mid Static Inverter Ducted Air Conditioner | Single Phase
Indoor: FDUM60VH
Outdoor: SRC60ZMXA-S
Backlit Controller: RC-EXZ3A
Specifications
| Capacity | 5.6 KW | ||
| Set | FDUM60ZMXAVH | ||
| Indoor | FDUM60VH | ||
| Outdoor | SRC60ZMXA-S | ||
| Power Source (Outdoor Unit) | 1 Phase 240V 50Hz | ||
| *Operation Data | Nominal Capacity Range | Cooling T1 (kW) | 5.6 (2.8-6.3) |
| Heating H1 (kW) | 6.7 (0.6-7.1) | ||
| Heating H2 (kW) | 4.9 | ||
| Power Consumption | Cooling T1 (kW) | 1.75 | |
| Heating H1 (kW) | 2.00 | ||
| Max Power Consumption (kW) | 2.90 | ||
| Running Current | Cooling T1 (A) | 7.80 | |
| Heating H1 (A) | 9.00 | ||
| Inrush Current, Maximum Current (A) | 5, 15 | ||
| EER | Cooling T1 | 3.20 | |
| COP | Heating H1 | 3.35 | |
| Sound Power Level (JS C9612) | Outdoor dB(A) | 64 | |
| Sound Pressure Level (JS C9612) | Indoor dB(A) | P-Hi:36 Hi:31 Me:28 Lo:25 | |
| Outdoor dB(A) | 54 | ||
| External Dimensions (HXWXD) | Indoor (mm) | 280x950x635 | |
| Outdoor(mm) | 640×800(+71)x290 | ||
| Net Weight | Indoor (Kg) | 34 | |
| Outdoor (Kg) | 45 | ||
| Supply Air Connection (mm) | 170×880 | ||
| Return Air Connection (mm) | 200×860 | ||
| External Static Pressure (Max) (Pa) | 100 | ||
| Airflow | Indoor (Cooling) (L/s) | P-Hi:333 Hi:250 Me:217 Lo:167 | |
| Indoor (Heating) (L/s) | P-Hi:333 Hi:250 Me:217 Lo:167 | ||
| Refrigerant (Type, Amount, Pre-charge Length) | Quantity (Kg) | (R410A) 1.5 | |
| Pre Charged To Pipe Length (m) | 15 | ||
| Installation Data | Refrigerant Piping | Liquid Line (mm) | Ø6.35 |
| Gas Line (mm) | Ø12.7 | ||
| Connection Method | Flare Connection | ||
| Maximum Pipe Length (One Way) (mm) | 30 | ||
| Max vertical height diff. between O.U. and I.U. | 20 ( O.U. above I.U. ) / 20 ( O.U. below I.U. ) | ||
| Controller | RC-E5, RC-EXZ3A, RCH-E3 or RCN-KIT4-E2 | ||
| Motion Sensor (Optional) | LB-KIT | ||
| Demand response (AS4755) | Yes | ||
