Mitsubishi Electric PUMY-SP125YKMD-AR1 14.0 kW Outdoor Unit Only
$6,233.00
Sale price
$6,233.00
Regular price
Skip to product information
Mitsubishi Electric PUMY-SP125YKMD-AR1 14.0 kW Outdoor Unit Only
$6,233.00
Sale price
$6,233.00
Regular price
Overview

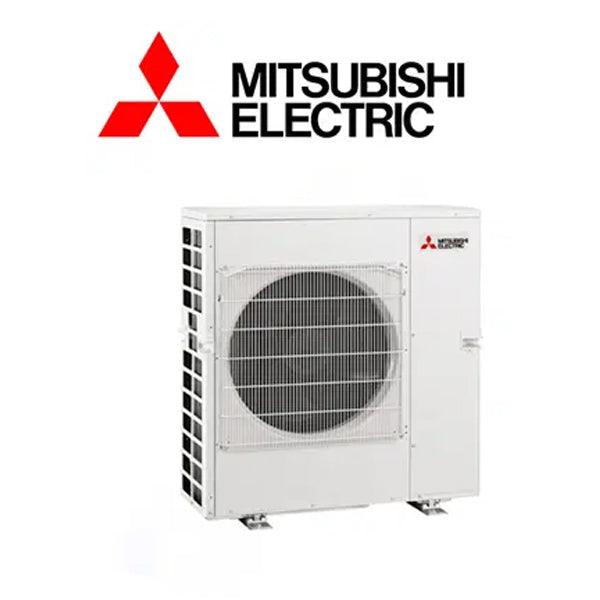

Mitsubishi Electric PUMY-SP125YKMD-AR1 14.0 kW Outdoor Unit
The Mitsubishi Electric PUMY-SP125YKMD-AR1 is a robust multi head outdoor unit designed to deliver 14.0 kW of cooling and 16.0 kW of heating. This single-fan heat pump VRF outdoor unit is compact and efficient, making it perfect for multi-room applications. With a reduced footprint and weight, it offers space-saving benefits and is suitable for confined installations. Its flexible piping connections and super quiet mode enhance its adaptability, while high energy efficiency ensures optimal performance year-round.
Specifications
| MODEL | PUMY-SP125YKMD | |||
| Power Source | 3-phase 380-400-415 V, 50Hz; 3-phase 380 V, 60 Hz | |||
| Cooling Capacity (Nominal) | ||||
| *1 | kW | 14.0 | ||
| *1 | BTU/h | 47,768 | ||
| Power Input | kW | 3.84 | ||
| Current Input | A | 6.14-5.83-5.62, 6.14 | ||
| AEER/EER | kW/kW | 3.29*3 / 3.65 | ||
| Temp Range cooling | ||||
| Indoor Temp. | WB | 15 to 24C | ||
| Outdoor Temp. | D.W | -5 to 52C *4,*5 | ||
| Heating Capacity (Nominal) | ||||
| *2 | kW | 16.0 | ||
| *2 | BTU/h | 54,592 | ||
| Power Input | kW | 3.90 | ||
| Current Input | A | 6.24-5.93-5.71 , 6.24 | ||
| ACOP/COP | kW/kW | 3.56 / 4.10 | ||
| Temp Range of Heating | ||||
| Indoor Temp | W.B | 15 to 27C | ||
| Outdoor Temp | W.B | -20 to 15C | ||
| Indoor Unit Connectable | ||||
| Total capacity | 50 to 130% of outdoor unit capacity | |||
| Model/ Quantity | ||||
| City Multi | P15-P140/10 | |||
| Branch Box | P15-P100/8 | |||
| Mixed System | ||||
| Branch Box 1 unit | City Multi | P15-P140/5 | ||
| Branch Box | P15-P100/5 | |||
| Branch Box 2 Unit | City Multi | P15-P140/3 | ||
| Branch Box | P15-P100/8 | |||
| Sound Pressure Level (Cooling/Heating) db<A> | 53/56 | |||
| Sound Power Level (Cooling) db<A> | 73 | |||
| Refrigerant Piping Diameter | ||||
| Liquid Piping | Mm | 9.52 Flare | ||
| Gas piping | Mm | 15.88 Flare | ||
| FAN | ||||
| Type x quantity | Propeller Fan _ 1 | |||
| Air flow rate | ||||
| m_/min | 83 | |||
| L/s | 1383 | |||
| Cfm | 2931 | |||
| External Static Pres | 0Pa , 30Pa *9 | |||
| Compressor | Type x Quantity | Twin rotary hermetic compressor _ 1 | ||
| Starting method | Inverter | |||
| Motor Output kW | 3.5 | |||
| External Finish | Galvanized Steel Sheet Munsell No. 3Y 7.8/1.1 | |||
| External Dimensions H x W x D | Mm | 981 _ 1,050 _ 330 (+25) | ||
| Protection Devices | ||||
| High Pressure Protection | High pressure Switch | |||
| Inverter circuit (COP/FAN) | Overcurrent detection, Overheat detection (Heat sink thermistor) | |||
| Compressor | Compressor thermistor, Over current detection | |||
| Fan motor | Overheating. Voltage protection | |||
| Refrigerant | ||||
| Type | R410A | |||
| Pre-Charged Quantity (kg) | 3.5 kg | |||
| Net weight(kg) | 94 *7 | |||
| Heat Exchanger | Cross Fin and Copper tube | |||
| Defrosting Method | Reversed refrigerant circuit | |||
| Optional Parts | Joint: CMY-Y62-G-E Header: CMY-Y64/68-G-E | |||
