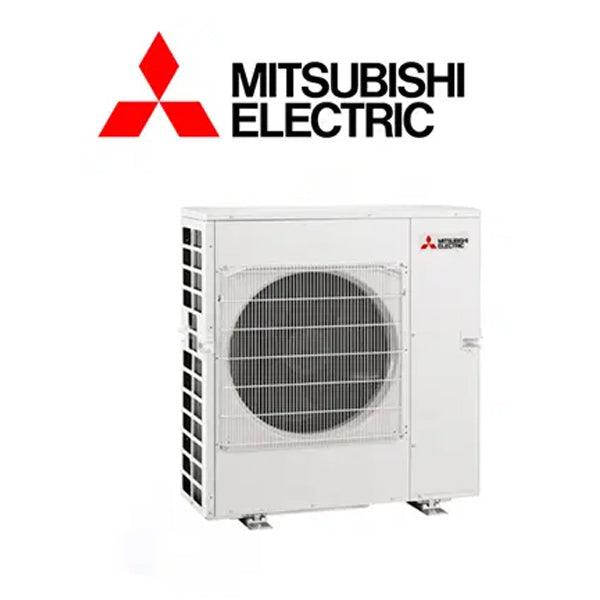

Mitsubishi Electric PUMY-SP112YKMD-AR1 12.5 kW Outdoor Unit Only
Mitsubishi Electric PUMY-SP112YKMD-AR1 12.5 kW Outdoor Unit Only
Overview
Mitsubishi Electric PUMY-SP112YKMD-AR1 12.5 kW Outdoor Unit
The Mitsubishi Electric PUMY-SP112YKMD-AR1 12.5 kW Outdoor Unit is a single fan heat pump VRF multi head system designed for efficiency and space-saving installation. With a robust cooling capacity of 12.4 kW and heating capacity of 14.0 kW, this unit offers reliable climate control. Its compact design allows for installation in confined spaces, making it ideal for balconies or tight spaces in residential and commercial settings. The unit supports flexible piping connections from four directions, enhancing installation versatility. Equipped with a super quiet mode, the PUMY-SP112YKMD-AR1 ensures low noise operation, perfect for residential zones. Experience exceptional energy efficiency and seamless connectivity with the M Series and Mr Slim indoor units, providing a versatile solution for multi-room applications.
Specifications
| MODEL | PUMY-SP112YKMD | |||
| Power Source | 3-phase 380-400-415 V, 50Hz; 3-phase 380 V, 60 Hz | |||
| Cooling Capacity (Nominal) | ||||
| *1 | kW | 12.5 | ||
| *1 | BTU/h | 42,650 | ||
| Power Input | kW | 3.10 | ||
| Current Input | A | 4.96-4.71-4.54, 4.96 | ||
| AEER/EER | kW/kW | 3.31 / 4.03 | ||
| Temp Range cooling | ||||
| Indoor Temp. | WB | 15 to 24C | ||
| Outdoor Temp. | D.W | -5 to 52C *4,*5 | ||
| Heating Capacity (Nominal) | ||||
| *2 | kW | 14.0 | ||
| *2 | BTU/h | 47,768 | ||
| Power Input | kW | 3.17 | ||
| Current Input | A | 5.07-4.82-4.64, 5.07 | ||
| ACOP/COP | kW/kW | 3.72 / 4.42 | ||
| Temp Range of Heating | ||||
| Indoor Temp | W.B | 15 to 27C | ||
| Outdoor Temp | W.B | -20 to 15C | ||
| Indoor Unit Connectable | ||||
| Total capacity | 50 to 130% of outdoor unit capacity | |||
| Model/ Quantity | ||||
| City Multi | P15-P140/9 | |||
| Branch Box | P15-P100/8 | |||
| Mixed System | ||||
| Branch Box 1 unit | City Multi | P15-P140/5 | ||
| Branch Box | P15-P100/5 | |||
| Branch Box 2 Unit | City Multi | P15-P140/3 or 2 *8 | ||
| Branch Box | P15-P100/7 or 8 *8 | |||
| Sound Pressure Level (Cooling/Heating) db<A> | 52/54 | |||
| Sound Power Level (Cooling) db<A> | 72 | |||
| Refrigerant Piping Diameter | ||||
| Liquid Piping | Mm | 9.52 Flare | ||
| Gas piping | Mm | 15.88 Flare | ||
| FAN | ||||
| Type x quantity | Propeller Fan _ 1 | |||
| Air flow rate | ||||
| m_/min | 77 | |||
| L/s | 1283 | |||
| Cfm | 2719 | |||
| External Static Pres | 0Pa , 30Pa *9 | |||
| Compressor | Type x Quantity | Twin rotary hermetic compressor _ 1 | ||
| Starting method | Inverter | |||
| Motor Output kW | 3.1 | |||
| External Finish | Galvanized Steel Sheet Munsell No. 3Y 7.8/1.1 | |||
| External Dimensions H x W x D | Mm | 981 _ 1,050 _ 330 (+25) | ||
| Protection Devices | ||||
| High Pressure Protection | High pressure Switch | |||
| Inverter circuit (COP/FAN) | Overcurrent detection, Overheat detection (Heat sink thermistor) | |||
| Compressor | Compressor thermistor, Over current detection | |||
| Fan motor | Overheating. Voltage protection | |||
| Refrigerant | ||||
| Type | R410A | |||
| Pre-Charged Quantity (kg) | 3.5 kg | |||
| Net weight(kg) | 94 *7 | |||
| Heat Exchanger | Cross Fin and Copper tube | |||
| Defrosting Method | Reversed refrigerant circuit | |||
| Optional Parts | Joint: CMY-Y62-G-E Header: CMY-Y64/68-G-E | |||
