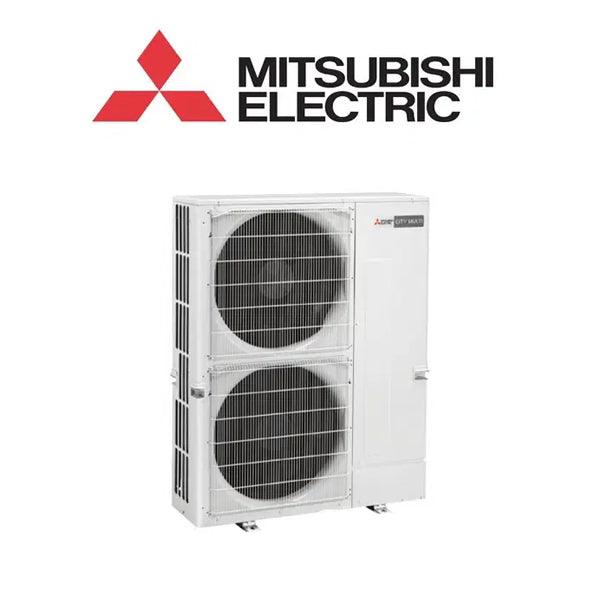

Mitsubishi Electric PUMY-P200YKMD-AR1 22.4 kw Outdoor Unit Only
$9,793.00
Sale price
$9,793.00
Regular price
Skip to product information
Mitsubishi Electric PUMY-P200YKMD-AR1 22.4 kw Outdoor Unit Only
$9,793.00
Sale price
$9,793.00
Regular price
Overview
Mitsubishi Electric PUMY-P200YKMD-AR1 22.4 kW Outdoor Unit
Experience the power and efficiency of the Mitsubishi Electric PUMY-P200YKMD-AR1, a 22.4 kW multi head outdoor unit designed for optimal cooling and heating. With its twin fan heat pump VRF system, this robust unit ensures reliable performance even in extreme conditions. Built with high-quality materials and advanced technology, it offers exceptional energy efficiency and precise climate control, making it the ideal choice for commercial and large residential applications.
Model: PUMY-P200YKMD
Power Source: 1-phase 220-230-240 V, 50 Hz; 3-phase 380-400-415 V, 50 Hz
Specifications
| SERIES | PUMY-P (Twin Fan) | ||||
| Model | PUMY-P200YKMD | ||||
| Power Source | VKMD: YKMD: | 1-phase 220-230-240 V, 50 Hz; 3-phase 380-400-415 V, 50 Hz | V, 60 Hz | ||
| Cooling Capacity | kW | 22.4 | |||
| (Nominal)*1 | Power Input | kW | 6.22 | ||
| Current Input | A | 10.16 9.65 9.30 | |||
| EER | kW | 3.60 | |||
| AEER | kW | 3.17 | |||
| Temperature Range of Cooling | Indoor | W.B | 15.0 ~ 24.0 C | ||
| Outdoor | D.B | -5.0 ~ 52.0C *4 *5 | |||
| Heating Capacity | kW | 25.0 | |||
| (Nominal)*2 Temperature Range of Heating | Power Input | kW | 6.00 | ||
| Current Input | A | 9.80 9.31 8.98 | |||
| COP | kW | 4.17 | |||
| ACOP Indoor | kW W.B | 3.78 | |||
| 15 ~ 27 C | |||||
| Outdoor | D.B | -20 ~ 15 C | |||
| Indoor Unit Connectable Sound Pressure Level (measured in anechoi | Total Capacity | 50% to 130% of Outdoor Unit Capacity | |||
| Model/Quantity c room) | dB | P15-P200/12 | |||
| 57/61 | |||||
| Refrigerant Piping Diameter | Liquid Pipe | mm (in.) | 9.52 (3/8) Flare *8 | ||
| Gas Pipe | mm (in.) | 19.05 (3/4) Flare | |||
| Fan | Type x Quantity | Propeller Fan x 2 | |||
| Airflow Rate | m3/min | 134 | |||
| L/s | 2,233 | ||||
| cfm | 4,732 | ||||
| Control, Driving Mechanism | DC Control | ||||
| Motor Output | kW | 0.20 + 0.20 | |||
| Compressor | Type x Quantity | Scroll Hermetic Compressor x 1 | |||
| Manufacturer | Mitsubishi Electric Corporation | ||||
| Starting Method | Inverter | ||||
| Motor Output | kW | 5.3 | |||
| External Finish External Dimension (H x W x D) | mm | Galvanised Steel Sheet Munsell No. 3Y 7.8/1. | 1 | ||
| 1,338 x 1,050 x 330 (+25) | |||||
| Protection Devices | High Pressure Protection | High Pressure Switch | |||
| Inverter Circuit (COMP./FAN) | Overcurre | nt Detection, Overheat Detection (Heat Sink | Thermistor) | ||
| Compressor | Compressor Thermistor, Overcurrent Detectio | n | |||
| Fan Motor | Overheating, Voltage Protection | ||||
| Refrigerant | Type x Original Charge | R410A x 7.3kg | |||
| Control | Linear Expansion Valve | ||||
| Net Weight | kg | 138 *9 | |||
| Heat Exchanger | Cross Fin and Copper Tube | ||||
| HIC Circuit (HIC: Heat Inter-Changer) | HIC Circuit | ||||
| Defrosting Method Drawing | External | Reversed Refrigerant Circuit | |||
| RK01J635 | |||||
| Wiring | VG79J111 | ||||
| Standard Attachment Optional Parts | Document | Installation Manual | |||
| Accessory | Ground Lead Wire x 1 | ||||
| Joint: CMY-Y62-G-E Header: CMY-Y64/68-G-E | |||||
