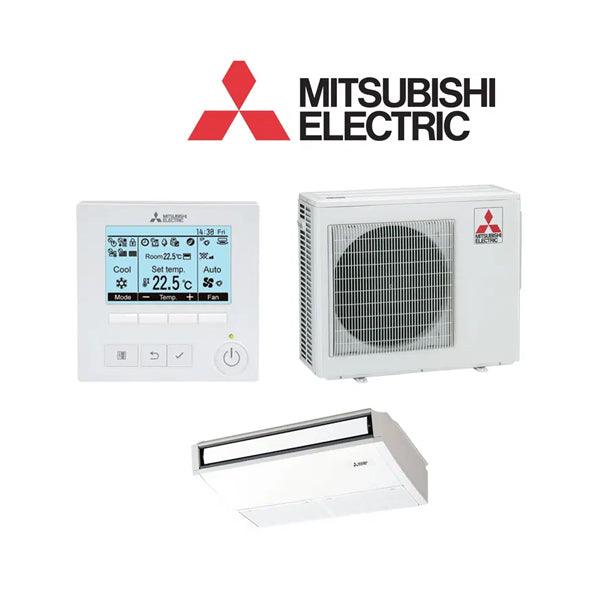

MITSUBISHI Under Ceiling System 5kW with Backlit Controller
The Mitsubishi Electric Under Ceiling System 5kW is a highly efficient under ceiling air conditioner designed for reliable climate control. Equipped with a single-phase power supply and the PAR-40MAA backlit controller, this system delivers 5.0kW cooling and 6.0kW heating capacities. Its compact design and advanced technology make it an ideal choice for seamless integration into modern Australian homes and offices.
Indoor Unit: PCA-M50KA
Controller: PAR-40MAA Backlit Controller Included
Specifications
| Indoor Unit | PCA-M50KA | |||
| Cooling | Capacity | Rated | kW | 5.0 |
| Min Max | kW | 2.3 5.6 | ||
| Total Input | kW | 1.40 | ||
| Running current | A | 6.48 | ||
| AEER/EER | Rated Conditions | 3.50/3.57 | ||
| Air Flow | Lo Mid2 Mid1 Hi | L/s | 167 183 217 250 | |
| Sound Pressure Levels | Indoor (Lo Mid2 Mid1 Hi) | dBA | 32 34 37 40 | |
| Heating | Capacity | Rated | kW | 6.0 |
| Min Max | kW | 1.7 6.6 | ||
| Total Input | kW | 1.68 | ||
| Running Current | A | 5.34 | ||
| ACOP/COP | Rated Conditions | 3.51 / 3.57 | ||
| Air Flow | Lo Mid2 Mid1 Hi | L/s | 167 183 217 250 | |
| Sound Pressure Levels | Indoor (Lo Mid2 Mid1 -Hi) | dBA | 32 34 37 40 | |
| Dimensions | HxWxD | mm | 230 x 960 x 680 | |
| Weight | kg | 26 | ||
| Electrical Supply | V / Ph / Hz | 230 / 1 / 50 | ||
| Breaker Size | A | 20 | ||
| Piping | Diameter | Gas | mm | À12.7 |
| Liquid | mm | À6.35 | ||
| Maximum Length | m | 30 | ||
| Maximum Height | m | 30 | ||
| Guaranteed Operating Range | Cooling | C | -5(-15) to 52 | |
| Heating | C | -15 to 24 | ||
