Overview

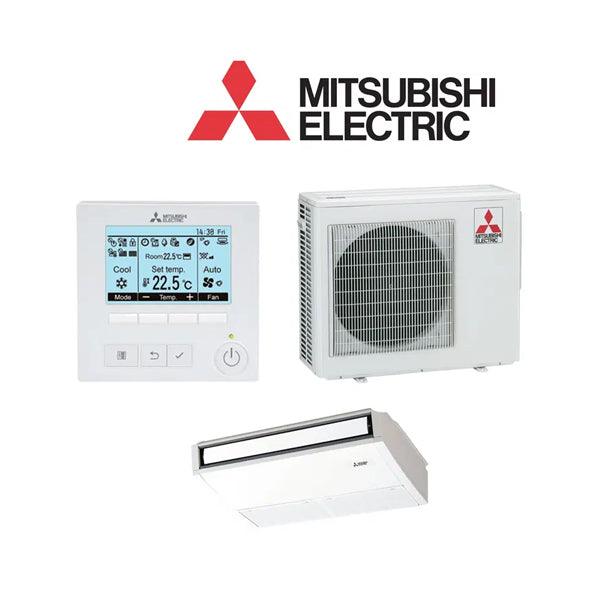

MITSUBISHI Under Ceiling System 13.5kW 3 Phase with Backlit Controller
Experience unparalleled climate control with the Mitsubishi under ceiling air conditioner, boasting a powerful 13.5kW cooling and 16.0kW heating capacity. Designed for efficiency and performance, this 3-phase system utilises R32 refrigerant, ensuring eco-friendly operation. The sleek under ceiling design is complemented by a backlit controller for easy operation. Perfect for large spaces, this system offers superior comfort and reliability.
Indoor: PKA-M140KAL
Outdoor: PUZ-ZM140YKA
Specifications
| Unit | PKA-M140KAL-3P | |||
| Indoor Unit | PKA-M140KAL | |||
| Outdoor Unit | PUZ-ZM140YKA | |||
| Cooling | Capacity | Rated | kW | 13.5 |
| Min Max | kW | 6.2 15.3 | ||
| Total Input | kW | 4.15 | ||
| Running current | A | 7.04 | ||
| AEER/EER | Rated Conditions | 3.14/3.25 | ||
| Air Flow | Low Mid Hi | L/s | 400 433 483 533 | |
| Sound Pressure Levels | Indoor (Lo-Mid-Hi) | dBA | 41 43 45 48 | |
| Outdoor | dBA | 50 | ||
| Heating | Capacity | Rated | kW | 16.0 |
| Min Max | kW | 5.7 18.0 | ||
| Total Input | kW | 4.72 | ||
| Running Current | A | 7.85 | ||
| ACOP/COP | Rated Conditions | 3.28 / 3.38 | ||
| Air Flow | Low Mid Hi | L/s | 400 433 483 533 | |
| Sound Pressure Levels | Indoor (Lo-Mid-Hi) | dBA | 41 43 45 48 | |
| Outdoor | dBA | 52 | ||
| Dimensions | Indoor | HxWxD | mm | 230 x 1600 x 680 |
| Outdoor | HxWxD | mm | 1338 x 1050 x 330 | |
| Weight | Indoor | kg | 40 | |
| Outdoor | kg | 114 | ||
| Electrical Supply | V / Ph / Hz | 400 / 3 / 50 | ||
| Breaker Size | A | 16 | ||
| Piping | Maximum Length | m | 75 | |
| Maximum Height | m | 30 | ||
| Guaranteed Operating Range | Cooling | C | -5(-15) to 52 | |
| Heating | C | -20 to 21 | ||
