Overview

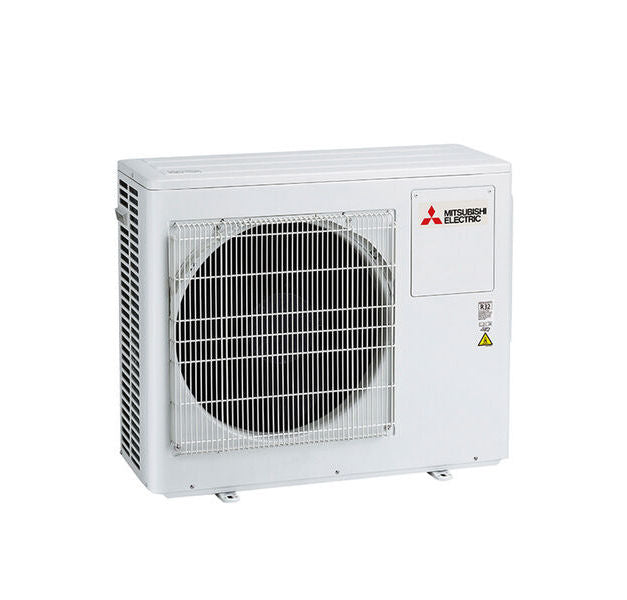

Mitsubishi Electric 7.1kW Multi Head Outdoor Unit MXZ-4F71VGD-A1 - Reverse Cycle
Mitsubishi Electric MXZ-4F71VGD-A1 7.1kW Multi Head Split System Outdoor Unit Only
2 - 4 Port Multi R32 Outdoor
7.1 kW Cooling
8.0 kW Heating
Mitsubishi Electric Multi Head Brochure
Specifications
| Model Name | MXZ-4F71VGD | |
|---|---|---|
| Type | Inverter | |
| Refrigerant | R32 | |
| Cooling | ||
| Capacity (Min - Rated - Max) | kW | 3.7 - 7.1 - 8.8 |
| Total Input (Rated) | kW | 1.79 |
| AEER/EER (Indoor + Outdoor) | 3.93/3.97 | |
| Sound Pressure Levels - | ||
| Outdoor at 1m | dB(A) | 63 |
| Heating | ||
| Capacity (Min - Rated - Max) | kW | 3.4 - 8.0 -10.7 |
| Total Input (Rated) | kW | 167 |
| ACOP/COP (Indoor + Outdoor) | 4.74/4.79 | |
| Sound Pressure Levels | ||
| Outdoor at 1m | dB(A) | 66 |
| Outdoor - Dimensions (HxWxD) | mm | 710 x 840 x 330 |
| Weight - Outdoor | kg | 59 |
| Electrical Supply | 230 volt/ Single Phase/ 50 Hertz - Outdoor Power Supply | |
| Breaker Size | A | 25 |
| Piping - max total length | m | 60 |
| max individual circuit | m | 25 |
| max height | m | 15/10* |
| Guaranteed Operating Range (°C) | Cooling | -10 ~ +46 |
| Heating | -15 ~ +24 | |
| * If indoor unit is installed above indoor | ||
