Mitsubishi Electric 12.5kW Power Inverter Ducted System PEAM125GAAVKIT
$4,630.00
Sale price
$4,630.00
Regular price
$5,296.00
Skip to product information
Mitsubishi Electric 12.5kW Power Inverter Ducted System PEAM125GAAVKIT
$4,630.00
Sale price
$4,630.00
Regular price
$5,296.00
Overview

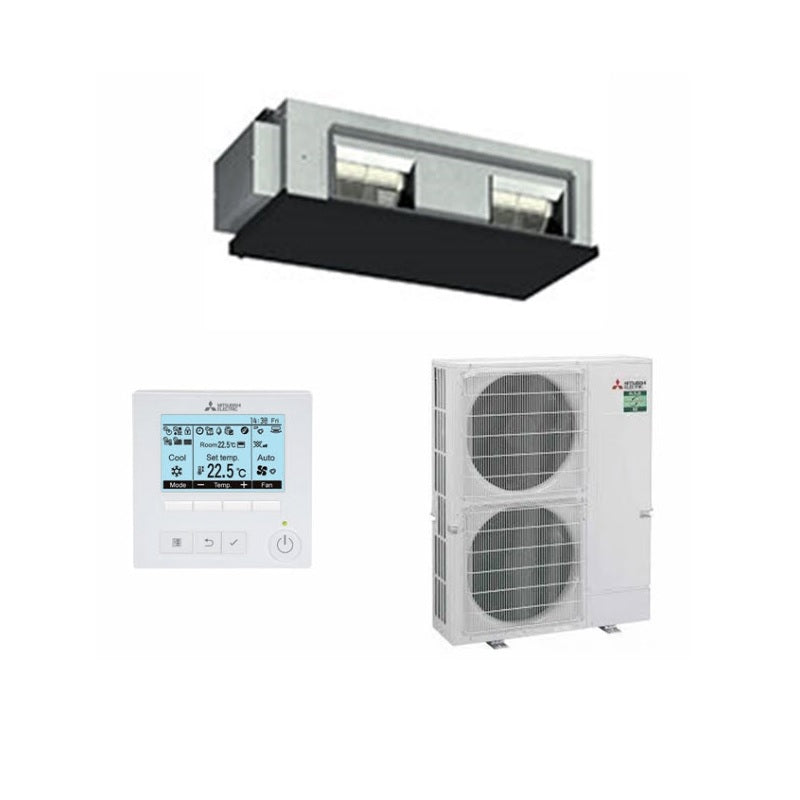

Mitsubishi Electric PEAM125GAAVKIT 12.5kW Ducted Air Conditioner System 1 Phase
PEAM125GAAVKIT Ducted Air Conditioner System, Ceiling Concealed Power Inverter
PEA-M125GAA.TH Indoor
PUZ-ZM125VKA-A.TH R32 Outdoor, Single Phase
PAR-40MAA Wired Control with Back Light
12.5kW Cool / 14kW Heat
PAR-40MAA Backlit Controller
Specifications
| Kit | PEAM125GAAVKIT | |||
| Indoor Unit | PEA-M125GAA | |||
| Outdoor Unit | PUZ-ZM125VKA-A | |||
| Power Supply | V / ø / Hz | 230 / 1 / 50 | ||
| Cooling | Capacity | min – nominal – max | kW | 5.5 – 12.5 – 14.0 |
| Total input | kW | 3.52 | ||
| AEER/EER | 3.45 / 3.55 | |||
| Running current (Rated) | A | 16.0 | ||
| Sound Pressure Level | In (Lo – Mid – Hi) | dB(A) | 42 – 45 | |
| Out | dB(A) | 50 | ||
| Air Volume (In) Lo – Mid – Hi | L/s | 800 – 1000 | ||
| Heating | Capacity | min – nominal – max | kW | 5.0 – 14.0 – 16.0 |
| Input | kW | 3.27 | ||
| ACOP/COP | 4.15 / 4.28 | |||
| Running current (Rated) | 15.4 | |||
| Sound Pressure Level | In (Lo – Mid – Hi) | 42 – 45 | ||
| Out | 52 | |||
| Air Volume (In) Lo – Mid – Hi | 800 – 1000 | |||
| Max. Running Current | A | 31.86 | ||
| Indoor Unit | Dimensions | H x W x D | mm | 400 x 1400 x 634 |
| Weight | kg | 63 | ||
| Outdoor Unit | Dimensions | H x W x D | mm | 1338 x 1050 x 330 |
| Weight | kg | 113 | ||
| Refrigerant | Pipe size | Liquid | mm | ø9.52 |
| Gas | mm | ø15.88 | ||
| Max. Piping Height | m | 30 | ||
| Max. Piping Length | m | 75 | ||
| Operating Range |
Cooling | °C | -5(-15) – 52 | |
| Heating | °C | -20 – 21 | ||
