Overview
MITSUBISHI Ceiling Cassette FDT100AVSAWVH 10kW 3 Phase - RC-EXZ3A Wired Controller Included
The Mitsubishi Ceiling Cassette FDT100AVSAWVH is a powerful 10kW 3-phase cassette system air conditioner designed for optimal climate control. This unit combines sleek design and advanced technology, featuring both Fine Snow and Shadow Black panel options. With efficient cooling and heating capacities, it's perfect for large spaces. Enjoy seamless integration with the RC-EXZ3A wired controller, delivering precise climate management with ease. Ideal for commercial settings, it's a reliable choice for year-round comfort.

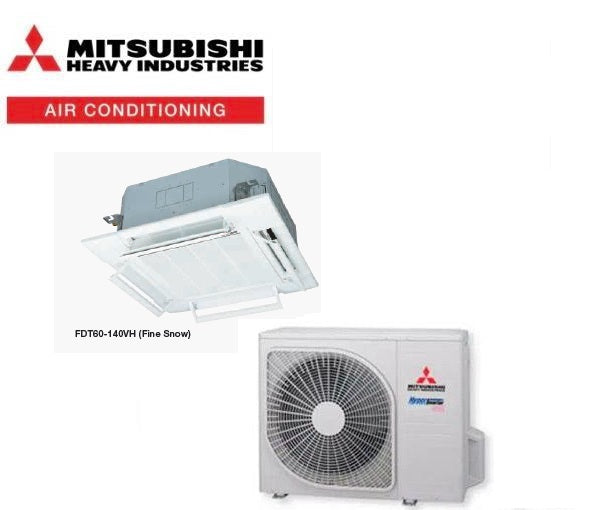

System: FDT100AVSAWVH
Indoor Unit: FDT100VH
Panel: T-PSAE-5BW-E / T-PSAE-5BB-E
Outdoor Unit: FDCA100VSA-W

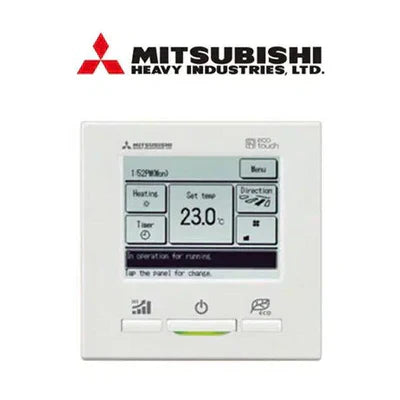

Controller: RC-EXZ3A
Specifications
| Specification | Detail |
|---|---|
| System | FDT100AVSAWVH |
| Indoor Unit | FDT100VH |
| Panel | T-PSAE-5BW-E (Fine Snow) / T-PSAE-5BB-E (Shadow Black) |
| Outdoor Unit | FDCA100VSA-W |
| Controller | RC-EXZ3A |
| Rated Capacity Cool/Heat | 10.0/11.2 kW |
| Weight | Indoor: 25 kg / Panel: 5 kg / Outdoor: 78 kg |
| External Dimensions (HxWxD) | Indoor: 298x840x840 mm / Panel: 35x950x950 mm / Outdoor: 845x970x370 mm |
| Refrigerant Piping | Liquid Line: Ø9.52 mm / Gas Line: Ø15.88 mm |
| Refrigerant | R32 |
| Precharged | 30 m |
| Quantity | 3.3 kg |
| Max Pipe Length | 50 m |
