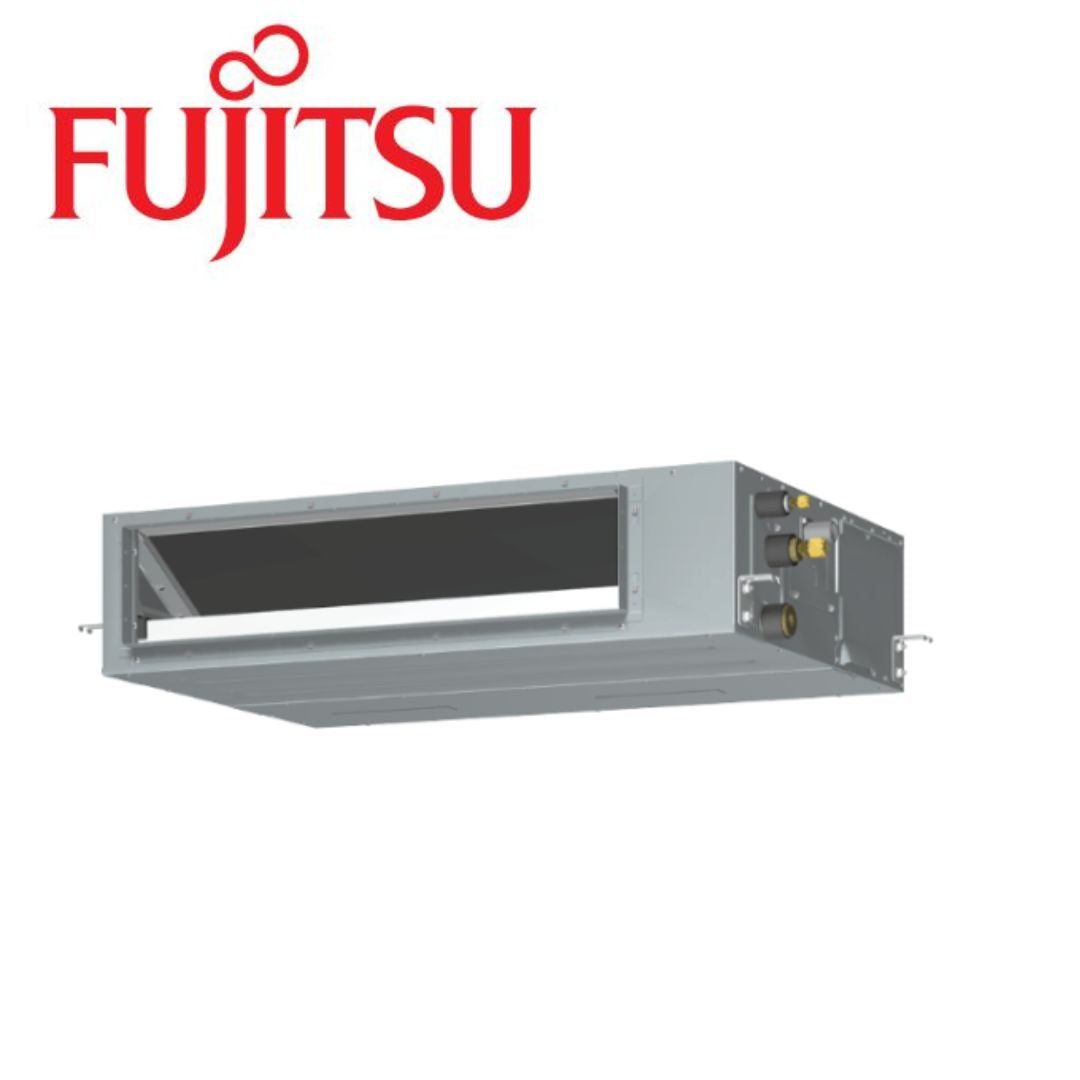

The Fujitsu ARTH24KMTAP 6.2kW Multi Type System is a ducted air conditioner indoor unit designed for mid static pressure applications. With reverse cycle operation and a compact design, it is perfect for discreet installation in various indoor settings. This unit operates quietly, providing efficient heating and cooling with a capacity class of 7kW. Ideal for both residential and commercial environments, it ensures reliable comfort all year round.
Model: ARTH24KMTAP
Operation Type: Reverse Cycle
| Model Number | ARTH24KMTAP |
| Operation Type | Reverse Cycle |
| Power Source | 230 / 1 / 50 |
| Capacity Class | 7 |
| Running Current | 0.6 / 0.6 |
| Indoor Sound Pressure Cooling | 38 / 27 |
| Indoor Sound Pressure Heating | 38 / 27 |
| Static Pressure Range | 50 to 150 |
| Air Circulation (Indoor – High Fan) Cooling | 417 |
| Air Circulation (Indoor – High Fan) Heating | 417 |
| Indoor Unit Dimensions | 240 x 1000 x 700 |
| Indoor Unit Weight | 31.00 |
| Piping Connects | 6.35 / 12.7 |
| Operation Range Cooling | 18 to 32 |
| Operation Range Heating | 16 to 30 |
| Refrigerant Type | R32 |
