| Model No. – Outdoor | AOTG30LAT4 |
| Reverse Cycle System | Yes |
| Cooling Capacity (Watts) | 8000 |
| Cooling Capacity (BTU/h) | 27300 |
| Range (Watts) | 3500-10100 |
| Range (BTU/h) | 11,940-34,500 |
| Heating Capacity (Watts) | 9600 |
| Heating Capacity (BTU/h) | 32800 |
| Range (Watts) | 3700-12000 |
| Range (BTU/h) | 12620-41000 |
| Power Supply (Volts) | 240 |
| Phase-Frequency (Ph – Hz) | 1-50 |
| Power Supply Attachment | Outdoor |
| Plug Size (If Applicable) | NA |
| Running Current, Cooling (Amps) | 9.3 |
| Running Current, Range (Amps) | Max 15.0 |
| Running Current, Heating (Amps) | 10.01 |
| Running Current, Range (Amps) | Max 15.00 |
| Input, Cooling (Watts) | 2220 |
| Input, Range (Watts) | Max 3560 |
| Input, Heating (Watts) | 2400 |
| Input, Range (Watts) | Max 3580 |
| E.E.R. – Cooling | 3.6 |
| C.O.P. – Heating | 4 |
| Fan Speed | 2 |
| Compressor Type | Twin Rotary |
| Dimensions -Outside Unit (HxWxD mm) | 830x900x330 |
| Weight – Outside unit (Kg) | 68 |
| O.U. Sound Pressure Level (dBA @1mtr) | 50 |
| O.U. Sound Power Level (dBA) | 64 |
| Refrigerant Type | R410A |
| Connection Pipe Sizes, Gas (mm) | 2 X 9.52, 2 X 12.7 |
| Connection Pipe Sizes, Liquid (mm) | 4 X 6.35 |
| Pre Charged Length (Metre) | 50 |
| Minimum Pipe Length (Metre) | 20 |
| Maximum Pipe Length per unit (Metre) | 25 |
| Maximum Pipe Length (Metre) | Max Total 70 |
| Maximum Pipe Height (Metre) | 15 (IU TO OU) |
| Pipe Connection Methods | Flare |
| Outdoor operating Temp, Cooling ℃ | 0 to 46 |
| Outdoor operating Temp, Heating ℃ | -10 to 24 |
Fujitsu 8kW Multi Head Outdoor Unit Only AOTH30KBTA4
$2,830.00
Sale price
$2,830.00
Regular price
$3,216.00
Skip to product information
Fujitsu 8kW Multi Head Outdoor Unit Only AOTH30KBTA4
$2,830.00
Sale price
$2,830.00
Regular price
$3,216.00
Overview

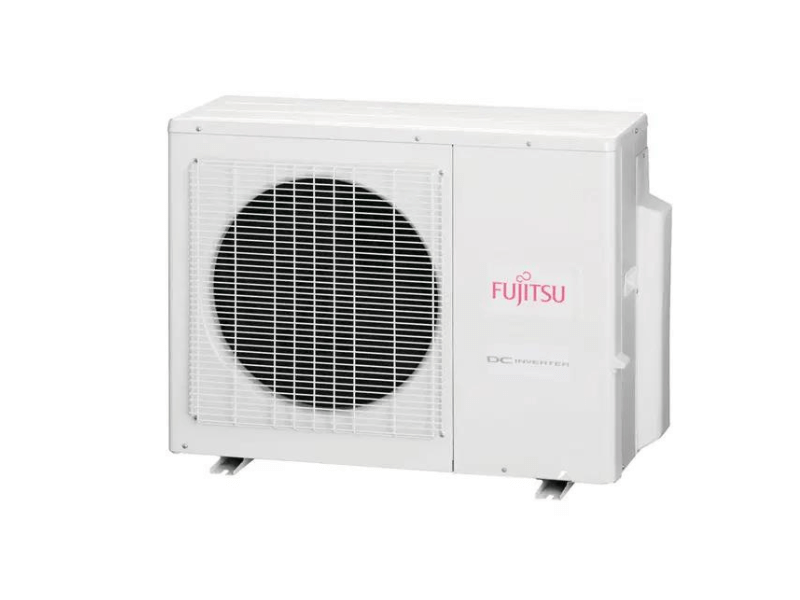

Fujitsu 8kW Multi Head Outdoor Unit Only AOTH30KBTA4 - Reverse Cycle
Fujitsu Reverse Cycle (R432A) Multi Head Split System Outdoor Unit Only AOTH30KBTA4
8kW Cooling – 9.6kW Heating capacity
Max Connectable indoor units: 4
