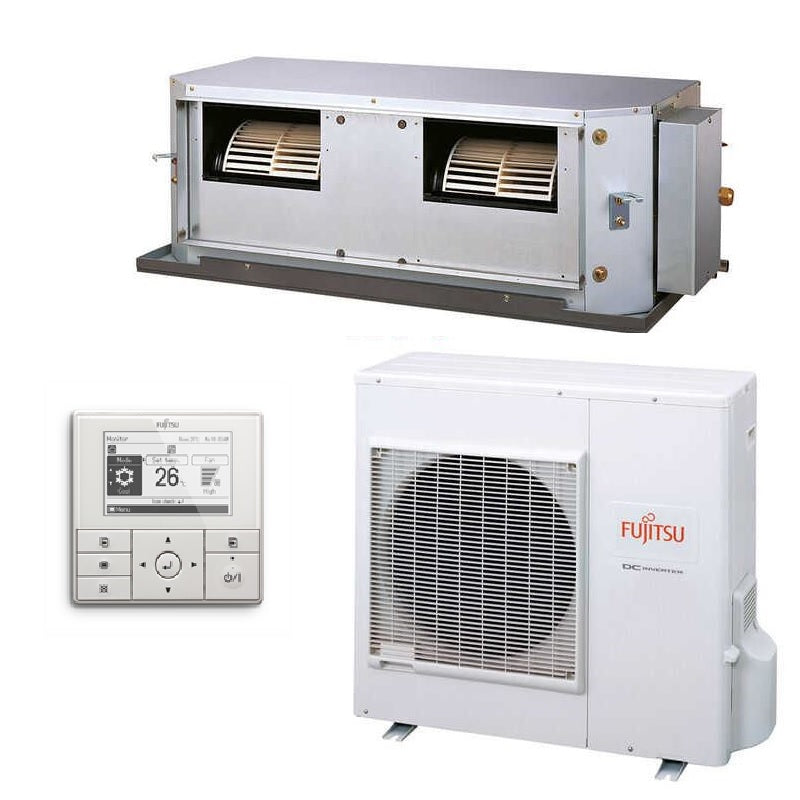

Fujitsu SET-ARTH45KHTA 11.5 kW Inverter Ducted Air Conditioner System 1 Phase

Fujitsu SET-ARTH45KHTA Inverter Ducted System High Static Single Fan Outdoor

Indoor ARTH45KHTA – Outdoor AOTH45KBTA 11.5 kW Cooling, 14.0 kW Heating Capacity

Controller: Wired Back lit Controller UTY-RNRT

11.5 kW Cooling
14.0 kW Heating

Single Fan Outdoor | High Static

Specifications


Operation Type	Reverse Cycle
Power SourceV/Ph/Hz	240 / 1 / 50
Cooling CapacitykW (Rated (Min – Max))	11.50 (5.7 – 13.5)
Heating CapacitykW (Rated (Min – Max))	14.00 (6.0 – 15.5)
Input Power CoolingkW (Rated (Max))	3.70 (5.62)
Input Power HeatingkW (Rated (Max))	3.84 (5.62)
EER CoolingkW/kW	3.11
COP HeatingkW/kW	3.65
Star Rating Cooling(0-10) (Hot / Average / Cold)	2.5 / 2.0 / 2.5
Star Rating Heating(0-10) (Hot / Average / Cold)	3.0 / 2.0 / 1.5
Total Cooling Seasonal Performance Factor ResidentialkW (Hot / Average / Cold)	4.250 / 3.979 / 4.140
Heating Seasonal Performance Factor ResidentialkW (Hot / Average / Cold)	4.581 / 3.875 / 3.249
Total Cooling Seasonal Performance Factor CommercialkW (Hot / Average / Cold)	4.550 / 4.647 / 4.970
Heating Seasonal Performance Factor CommercialkW (Hot / Average / Cold)	4.588 / 4.174 / 3.508
Running Currentamps (Cooling / Heating)	15.5 / 16.1
Moisture Removall/hr	0.9
Indoor Sound Pressure CoolingdBA (High / Low)	43 / 35
Indoor Sound Pressure HeatingdBA (High / Low)	43 / 35
Outdoor Sound PressuredBA (Cooling / Heating)	58 / 58
Outdoor Sound PowerdBA	72
Static Pressure RangePA (Min to Max)	60 to 260
Air Circulation (Indoor – High Fan) Coolingl/sec	903
Air Circulation (Indoor – High Fan) Heatingl/sec	903
Indoor Unit Dimensionsmm (Height x Width x Depth)	425 x 1250 x 490
Indoor Unit Weightkg	54.00
Outdoor Unit Dimensionsmm (Height x Width x Depth)	914 x 970 x 370
Outdoor Unit Weightkg	75.00
Piping Connectsmm Ø (Liquid / Gas)	9.52 / 15.88
Pipe Lengthm (Max (Precharged))	50 (20)
Max Height Differencem	30
Operation Range Cooling°CDB (Min to Max)	-15 to 46
Operation Range Heating°CDB (Min to Max)	-15 to 24
Refrigerant Type	R410A
Refrigerant Amount	2,900

Features

Automatic Air Flow Adjustment

Name: Fujitsu 11.5 kW Inverter Ducted Air Conditioner System SET-ARTH45KHTA
Brand: Fujitsu
SKU: ARTG45KHTA / AOTH45KBTA
Price: 4063.00 AUD
Availability: InStock

When auto mode is selected for the fan, the micro-processor adjusts the airflow to follow changes in room temperature.

Program Timer

This timer allows selection of one of four options. ON, OFF, ON > OFF, or OFF > ON.

Filter sign

Indicates the filter cleaning period by lamp.

ON-OFF Timer

ON-OFF timer can be set to operate once every 24 hours.

Economy mode

Limits the maximum operation current, and performs operation with the power consumption suppressed.

Weekly Timer

Different on-off times can be set for up to 7 days.

Fujitsu 11.5 kW Inverter Ducted Air Conditioner System SET-ARTH45KHTA

Overview
