Overview

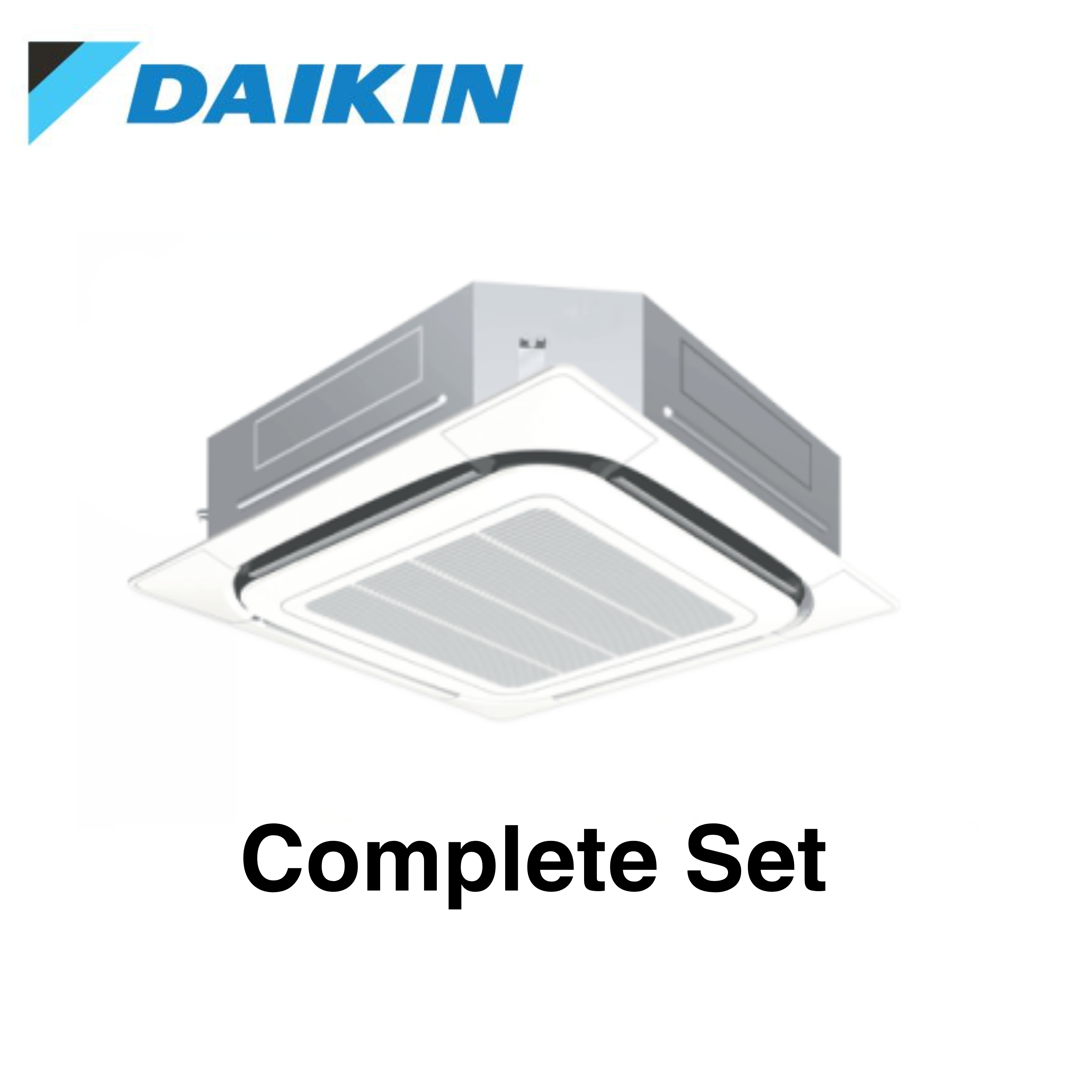

Daikin FCA85C-CC2V 8.5kW Inverter Cassette System
The Daikin FCA85C-CC2V 8.5kW inverter cassette air conditioner provides exceptional climate control with its efficient cooling and heating capabilities. Designed for seamless integration, this system is perfect for both residential and commercial spaces. It offers quiet operation, energy efficiency, and a modern, discreet design. With a 1-phase power supply and R32 refrigerant, this system is a reliable choice for year-round comfort.
Indoor: FCA85CVMA
Outdoor: RZAC85C2V1
Fascia: BYCQ125EAF
Controller: Wired Controller BRC1E63
Specifications
| Indoor Unit | FCA85CVMA | |||||||
| Outdoor Unit | RZAC85C2V1 | |||||||
| Power Supply | ø / V / Hz | 1 Phase, 220-240V, 50 Hz | ||||||
| Cooling Capacity | Rated (Min – Max) | kW | 8.5 (3.2 – 10.0) | |||||
| Heating Capacity | Rated (Min – Max) | kW | 10.0 (3.5 – 11.2) | |||||
| Power Consumption | Cooling | kW | 2.25 | |||||
| Heating | kW | 2.42 | ||||||
| Energy Efficiency | EER | kW | 3.78 | |||||
| COP | kW | 4.13 | ||||||
| Indoor Unit | Colour | Unit | – | |||||
| Decoration Panel | Fresh White | |||||||
| Airflow Rate (H / HM / M / ML / L) | L/s | 575 / 517 / 458 / 400 / 333 | ||||||
| m³/min | 34.5 / 31.0 / 27.5 / 24.0 / 20.0 | |||||||
| Sound Pressure Level (H / HM / M / ML / L) | dB(A) | 45.0 / 42.0 / 39.0 / 36.5 / 34.0 | ||||||
| Dimensions (HxWxD) | Unit | mm | 298 x 840 x 840 | |||||
| Decoration Panel | mm | 50 x 950 x 950 | ||||||
| Machine Weight | Unit | kg | 26 | |||||
| Decoration Panel | kg | 5.5 | ||||||
| Certified Operation Range | Cooling | °CWB | 14 to 25 | |||||
| Heating | °CDB | 15 to 27 | ||||||
| Outdoor Unit | Colour | Ivory white | ||||||
| Compresser | Type | Hermetically sealed swing type | ||||||
| Motor output | kW | 2.4 | ||||||
| Refrigerant Charge (R410a) | kg | 2.6 (charged for 30m) | ||||||
| Sound Level | Cooling / Heating | dB(A) | 51 / 54 | |||||
| Night quiet mode | dB(A) | 47 | ||||||
| Sound Power Level (H/L) | dB(A) | 70 | ||||||
| Dimensions (HxWxD) | mm | 990 x 940 x 320 | ||||||
| Machine Weight | kg | 69 | ||||||
| Certified Operation range | Cooling | °CDB | -5 to 46 | |||||
| Heating | °CWB | -15 to 15.5 | ||||||
| Piping Connections | Liquid (Flare) | mm | ø9.5 | |||||
| Gas (Flare) | mm | ø15.9 | ||||||
| Drain | Indoor Unit | mm | I.D. ø25 x O.D ø32 | |||||
| Outdoor Unit | mm | ø26.0 (Hole) | ||||||
| Refrigerant | R32 | |||||||
| Max, interunit piping length | m | 50 (Equivalent length 70) | ||||||
| Max. Installation level difference | m | 30 | ||||||
| Heat insulation | Both liquid and gas piping | |||||||
